Jackoboard Aqua Line Easy Shower Tray Board for Linear Drain

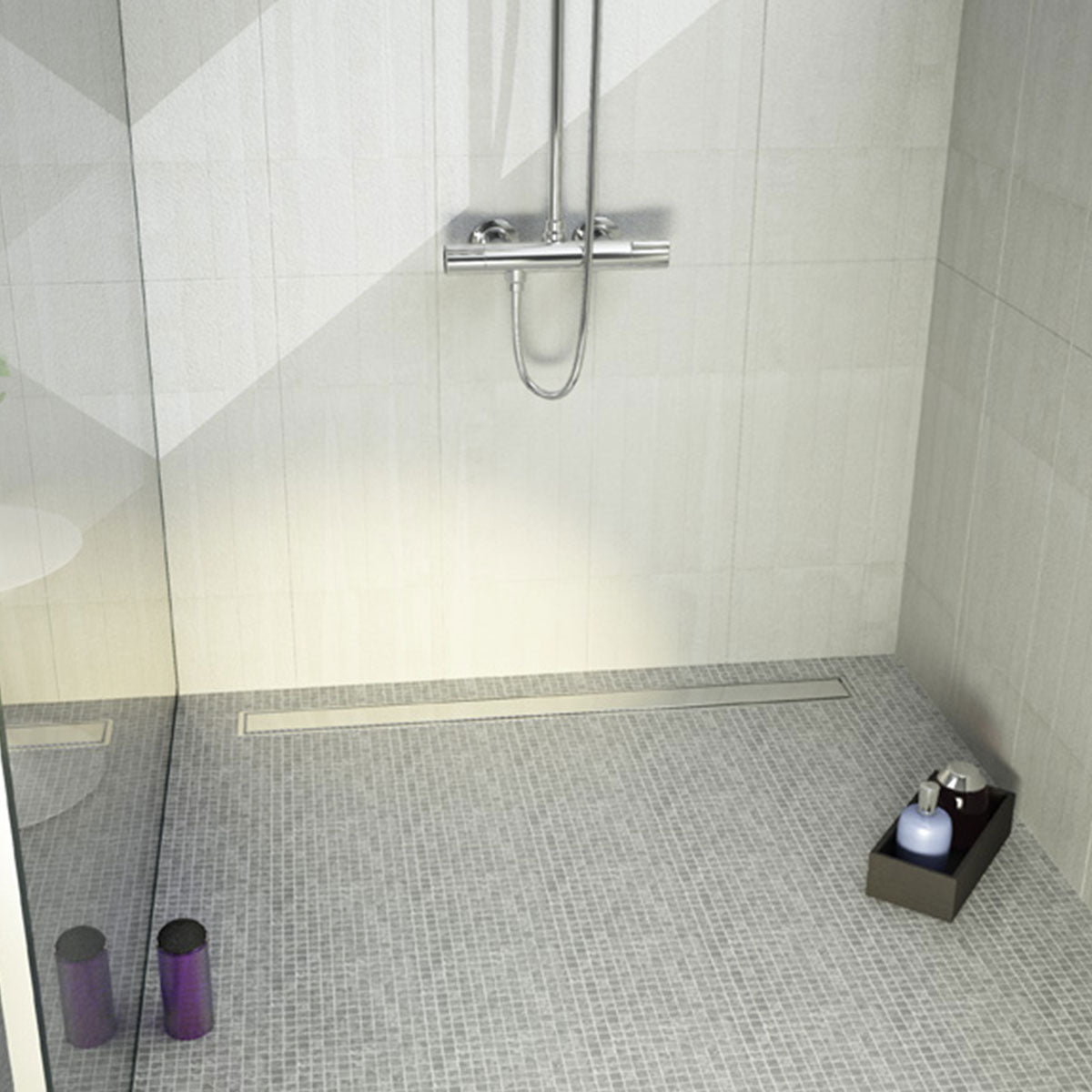

The JACKOBOARD Aqua Line Easy of low profile shower bases has been specifically designed to create wet rooms and walk-in showers in properties with suspended timber floors. However, you can also install the system in a solid floor if desired.
The JACKOBOARD Aqua Line Easy shower tray board consists of a shower base and a drain unit. Both components are designed for each other and no other drain unit is compatible with the Aqua Line Easy board. Each shower tray board comes

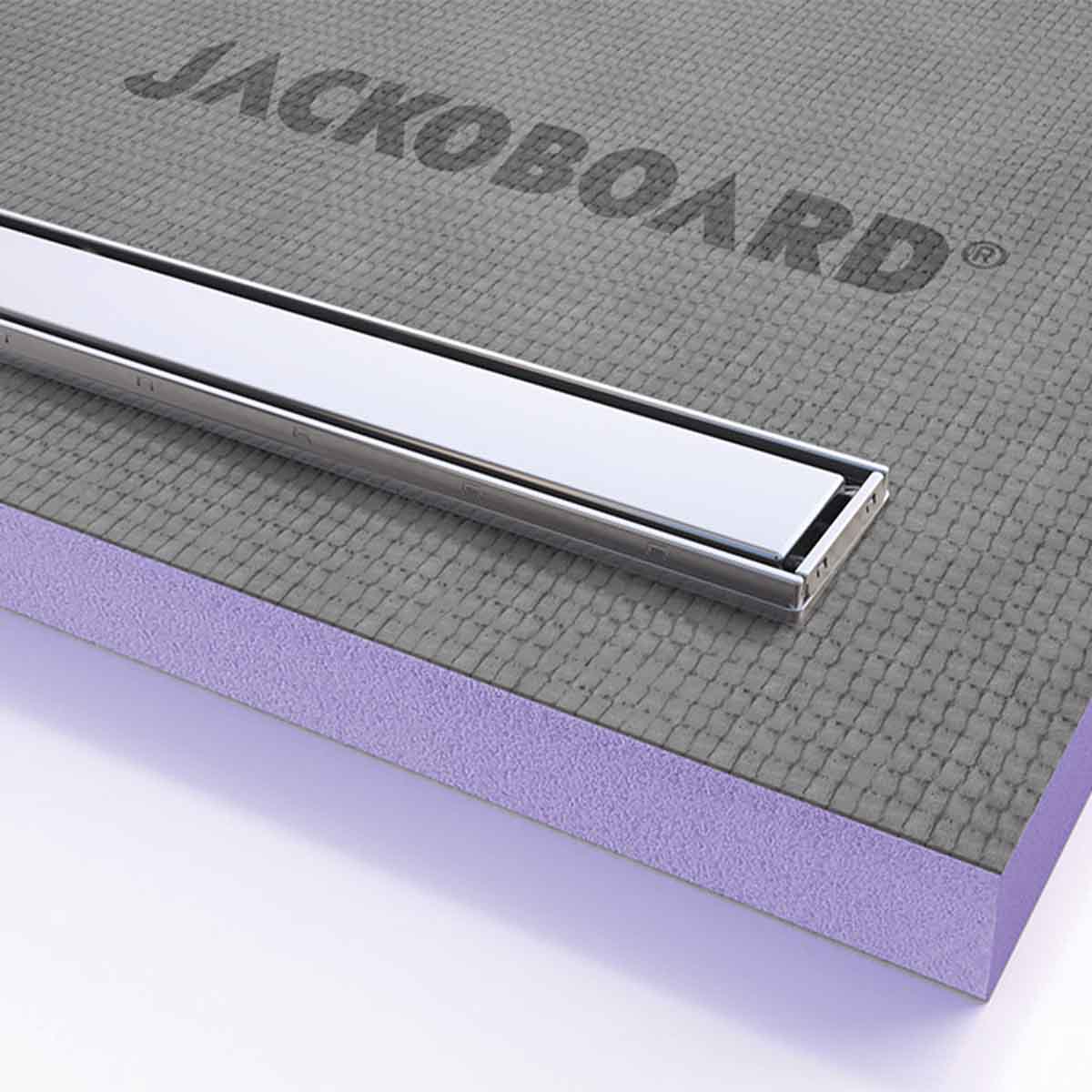

The shower tray board has a water-repellent core made of extruded polystyrene foam and an extremely low installation height with an incorporated drainage fall. They also feature a special coating on both sides that permits direct tiling without the need for additional preparatory work. The whole board is completely waterproof and stable - it is not affected by moisture, humidity or movement in the substrate.
To completely seal the installation area so it is totally waterproof it is highly recommended you use a sealing membrane kit such as the JACKOBOARD Wetroom Sealing Kit.
Shower Tray Board Features
- 100% waterproof construction
- Extremely low installation height
- Bar and frame made of stainless steel
- With special coating on both sides
- Tiles can be applied directly
- Excellent thermal insulation properties (see the downloadable specsheet)
- Smooth, easy-clean surface with self-cleaning effect
- Water trap height: 22 mm
- Wheelchair-accessible
- Compressive strength > 300 kPa
- Sealed drain flange
- Available in many sizes (see below)
Suitable for
- Wood or concrete subfloor
- Tiled floor finish
- Use with wheelchairs (min 50mm sqm tiles)
- Wet rooms
- Level access
- Raised on platform
- Underfloor heating
Not suitable for
- Vinyl floor finish
- Micro-cement
- Fitting direct on joists
Shower Tray Board Sizes (Width x Length x Depth)

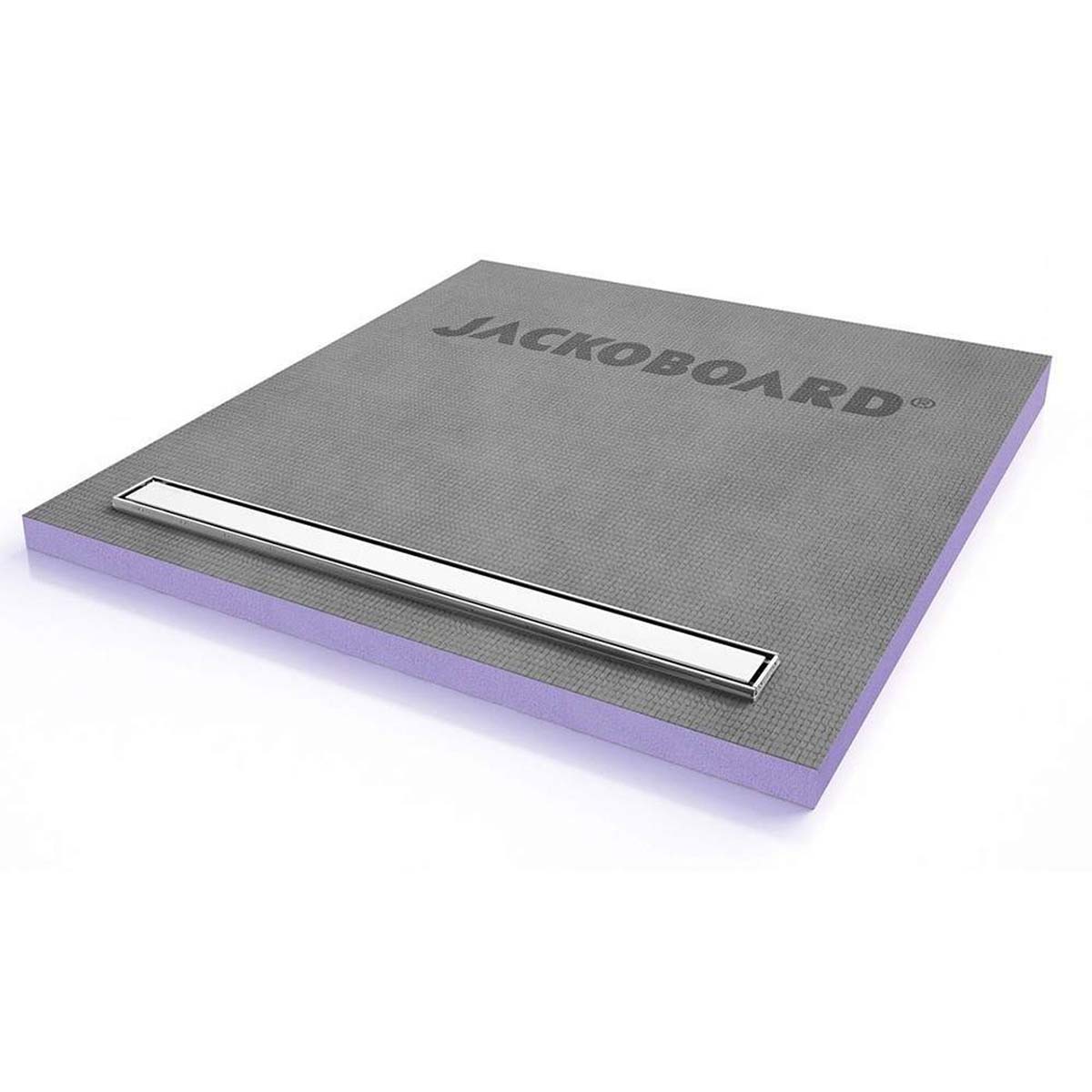

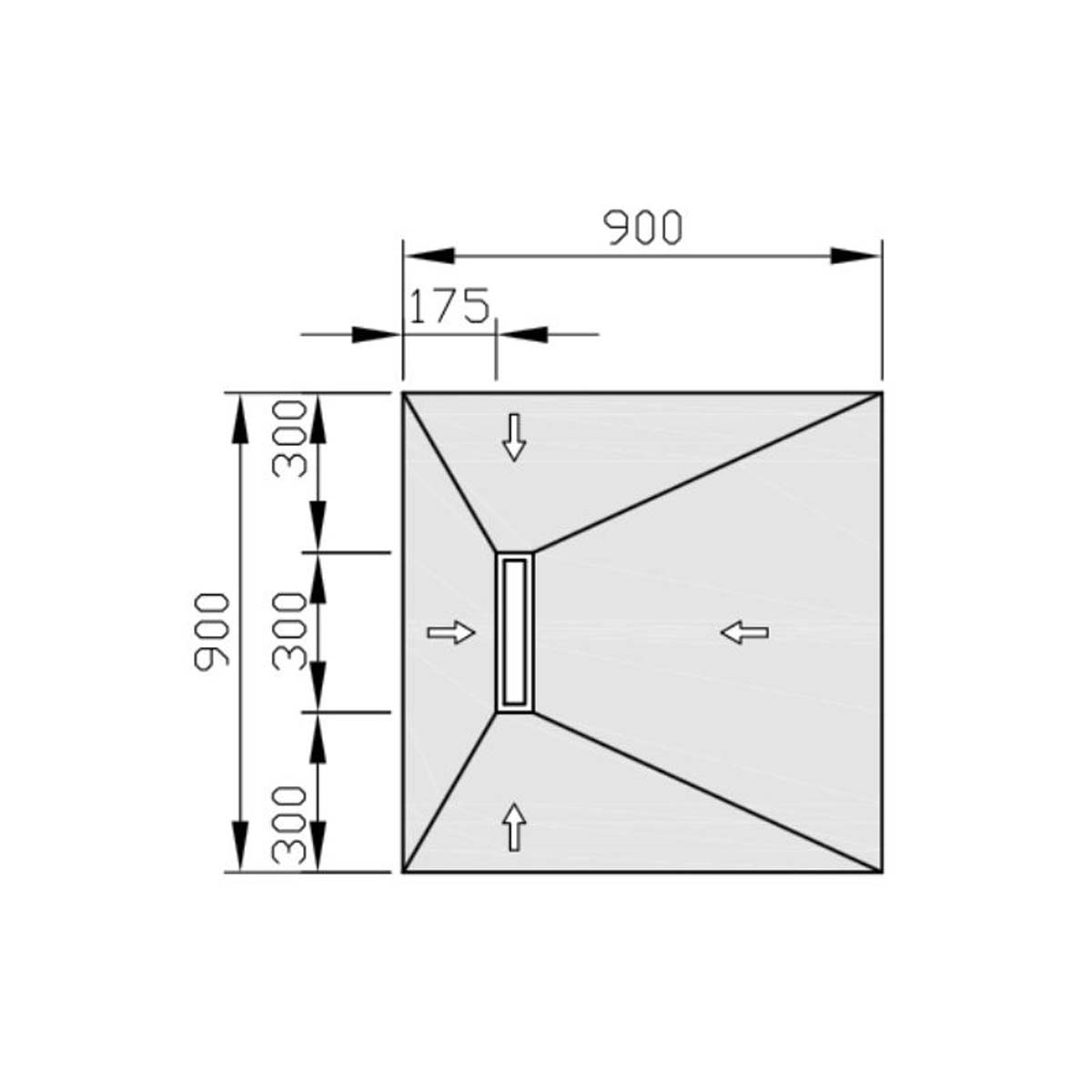

- W 900 x L 900 x D 30mm

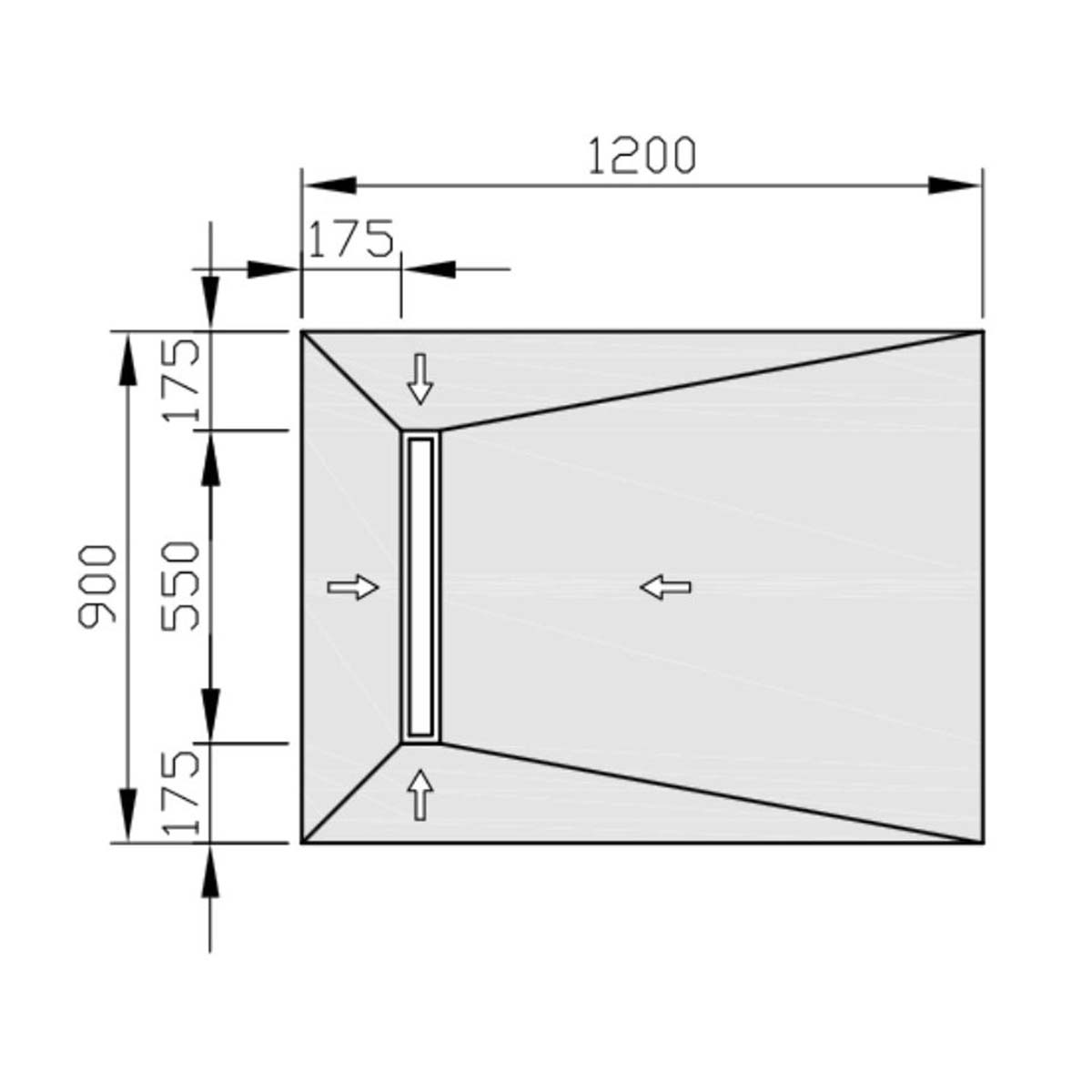

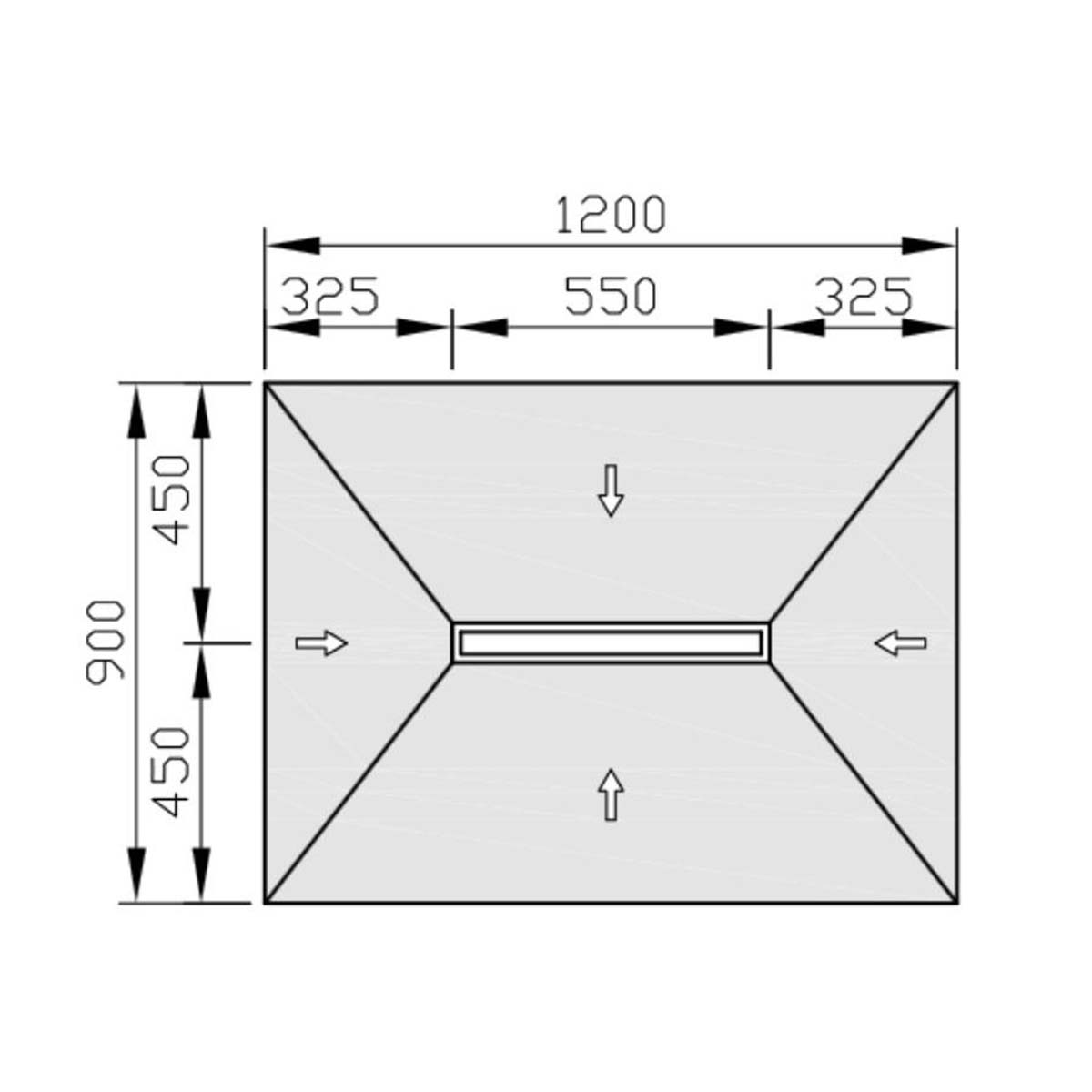

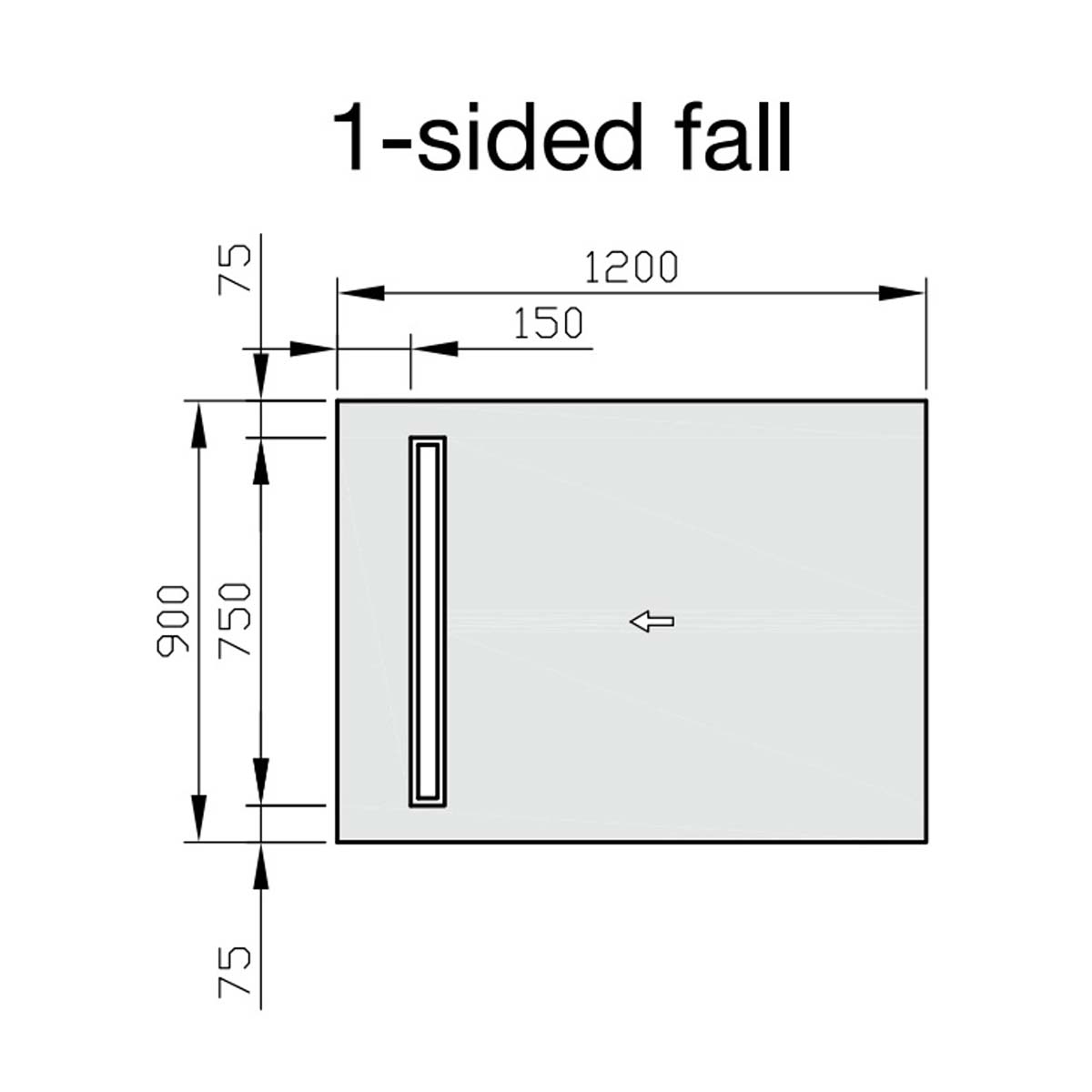

- W 1200 x L 900 x D 30mm
- W 1200 x L 900 x D 40/25mm

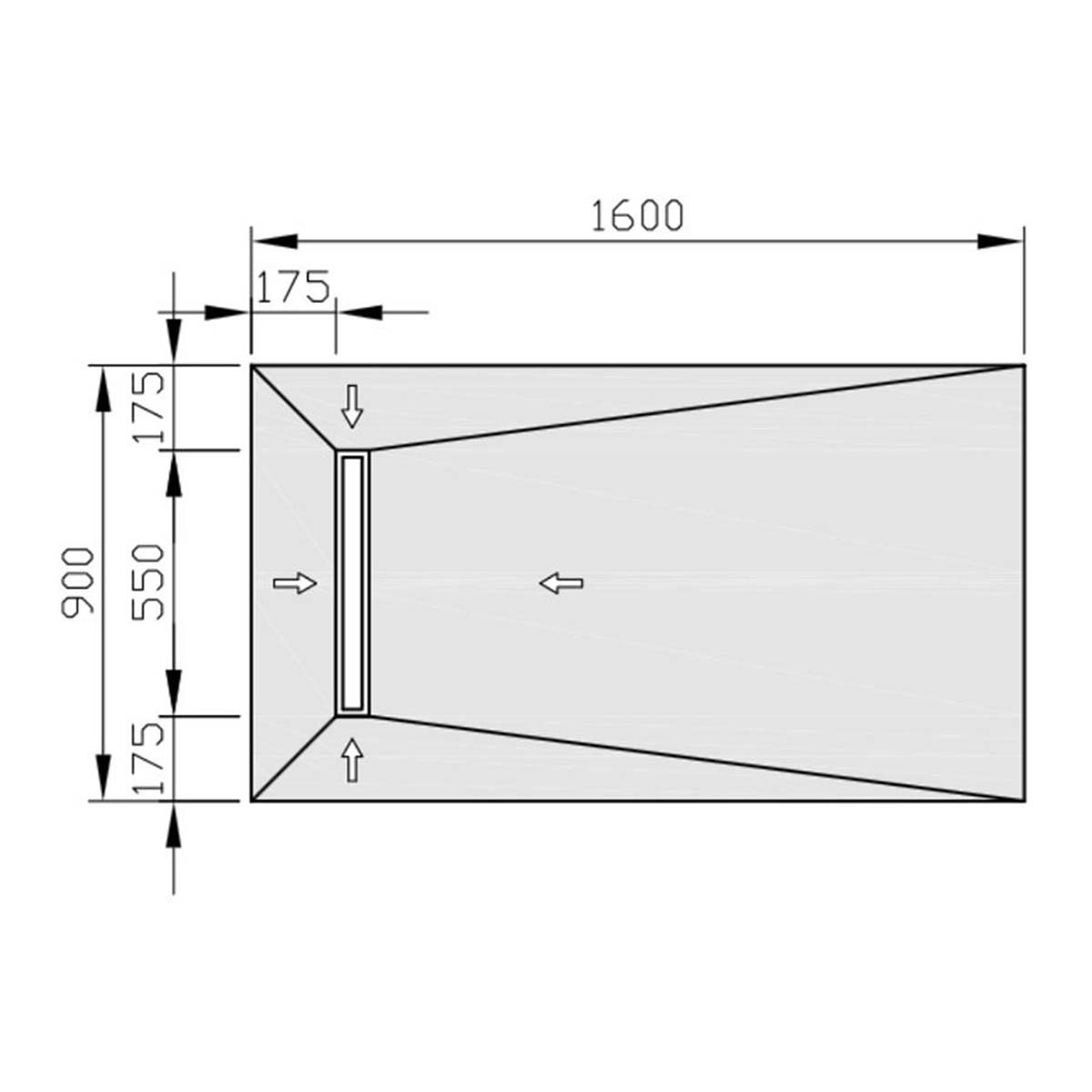

- W 1600 x L 900 x D 30mm
- W 1800 x L 900 x D 30mm
The drain kit comes with the following:
- Retaining ring with seal ring
- Protective cover
- Trap cup (pre-fitted within base nozzle and removable for maintenance and cleaning)
- Compression fit adapter
- Solid stainless steel drain cover (can be inverted and tiled)
-
Drain not included.Sold separately. See product options
Shower Tray Board Specifications
| Brand |
Jackoboard |
| Product Type |
Shower tray board |
| Shower Base Material |
Extruded polystyrene foam |
| Shower Base Shape |
Square & Rectangle |
| Colour |
Grey with purple |
| Thickness |
30mm & 40/25mm |
| Waste type |
Linear |
| Waste position |
Multiple positions. See product options. |
| Drain |
Horizontal |
| Drain grate material |
Stainless steel |
| Guarantee |
20 year manufacturer's guarantee |
Additional Information
- Jackoboard Aqua shower boards are not self-supporting. In order to support the base firmly when creating a level-entry design on a suspended timber floor a sub-floor must be constructed between the joists using, for example, 18mm plywood.
- Trimmable by 50mm off each edge
- To fit the drain body under the floor the centre point of the drain must be at least 90mm from any floor joists.
