Belgravia 2-Outlet 2-Handle Thermostatic Shower Set with Hand Shower and Overhead

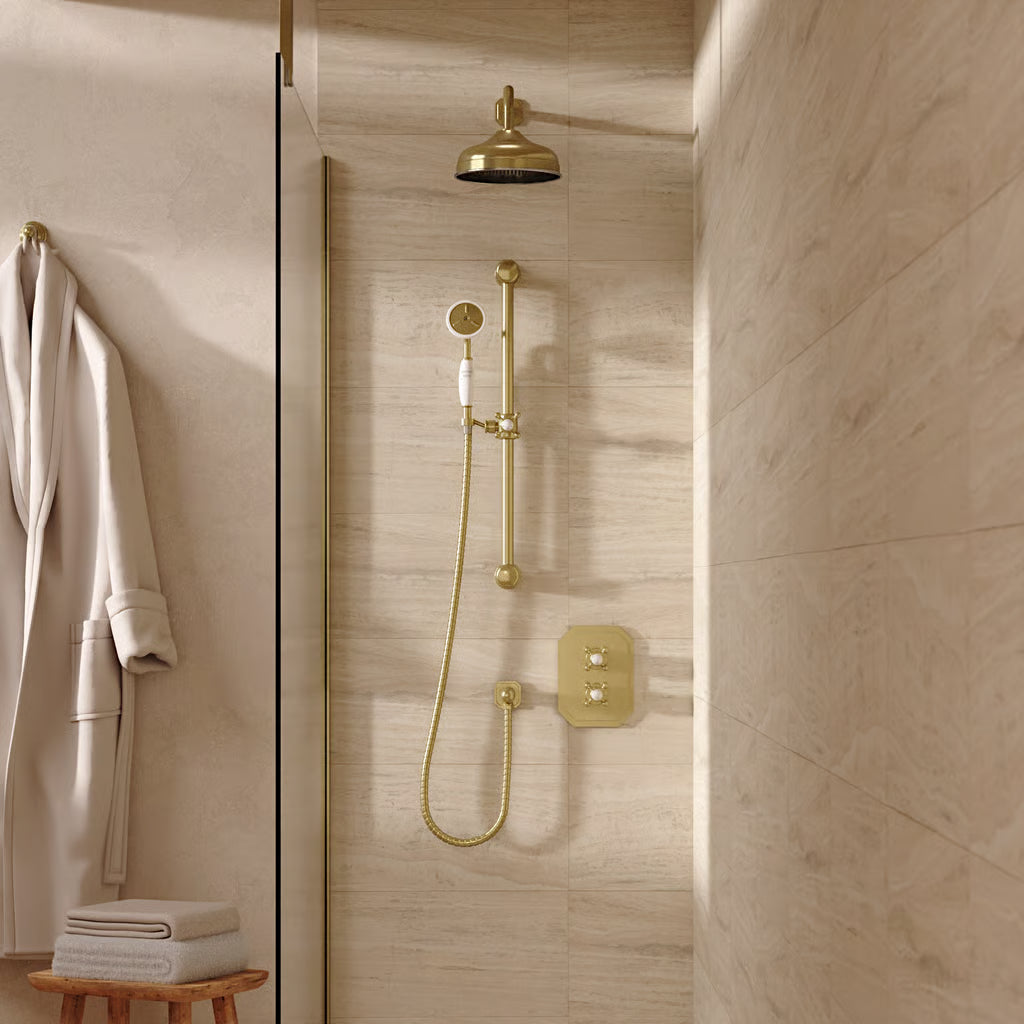

This concealed shower set from Crosswater's Belgravia range showcases a classic look with dual white ceramic handle controls, ideal for traditionally styled Irish bathrooms.
The shower set includes a 2-outlet, dual‑handle thermostatic shower valve and a large 200mm circular shower head. You can choose between a wall‑mounted or ceiling‑mounted shower arm to suit your bathroom layout. The handset is available with either a wall outlet or a slide‑rail fitting - both options coming complete with 1.5m long hose.
Designed to deliver an invigorating, concentrated spray, this shower provides a truly luxurious showering experience. The shower head features easy‑clean nozzles, allowing for quick removal of limescale build‑up and helping to prevent uneven water spray.
Finished in elegant Brushed Brass or Brushed Nickel, the Belgravia shower set perfectly blends vintage charm with modern style. Backed by a 15‑year manufacturer’s guarantee, it offers long‑lasting quality and reliability you can enjoy for many years to come.

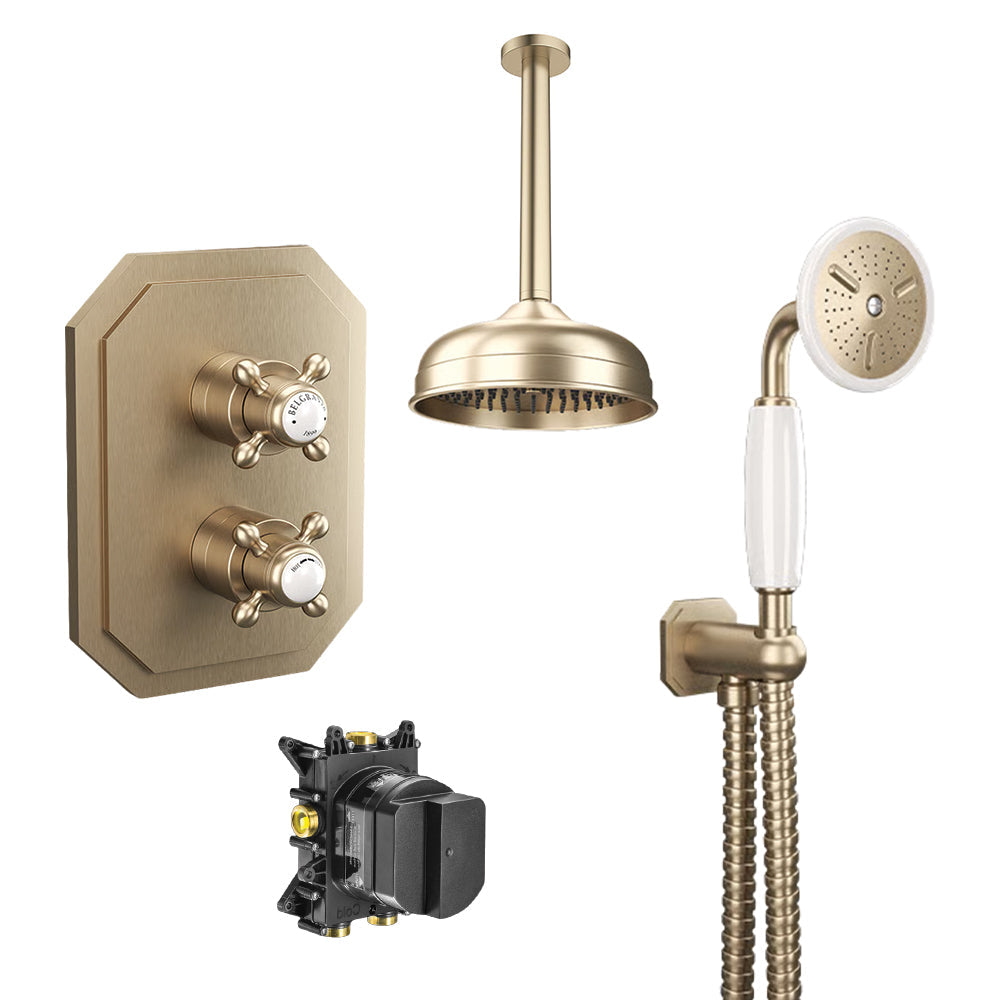

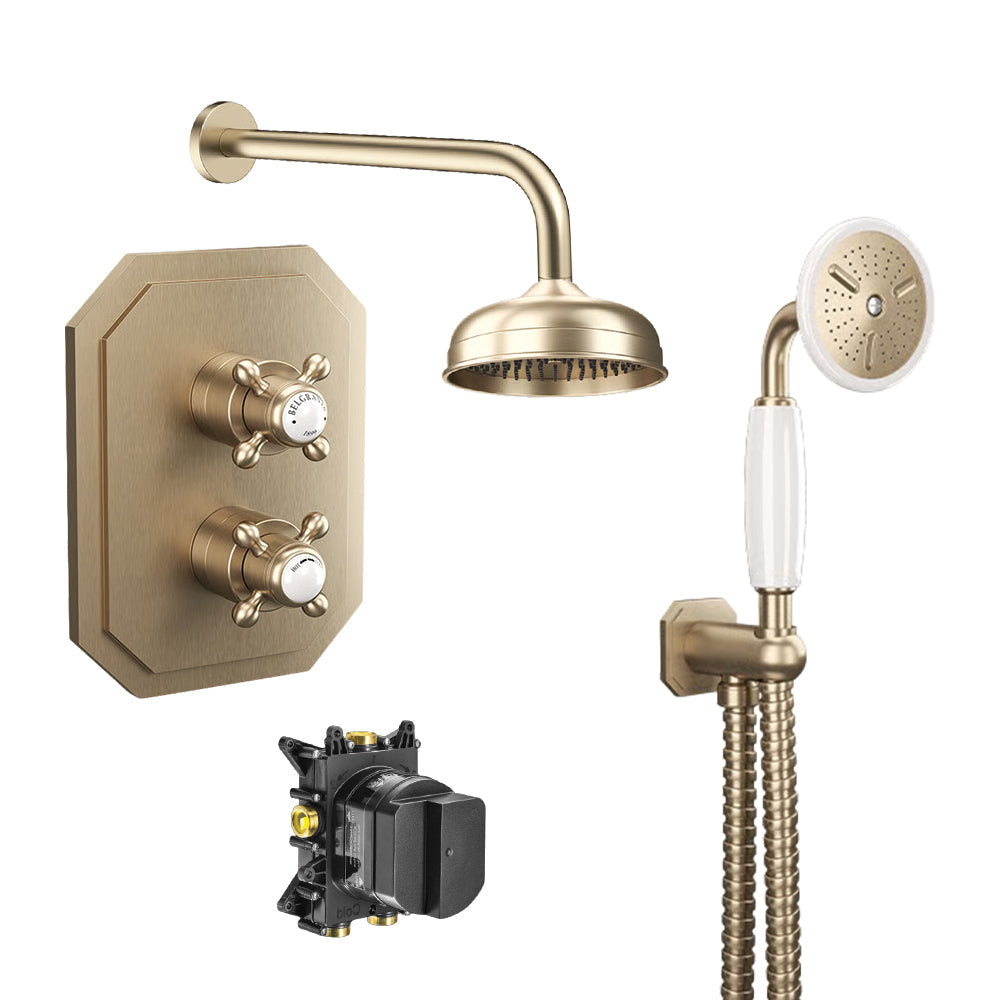

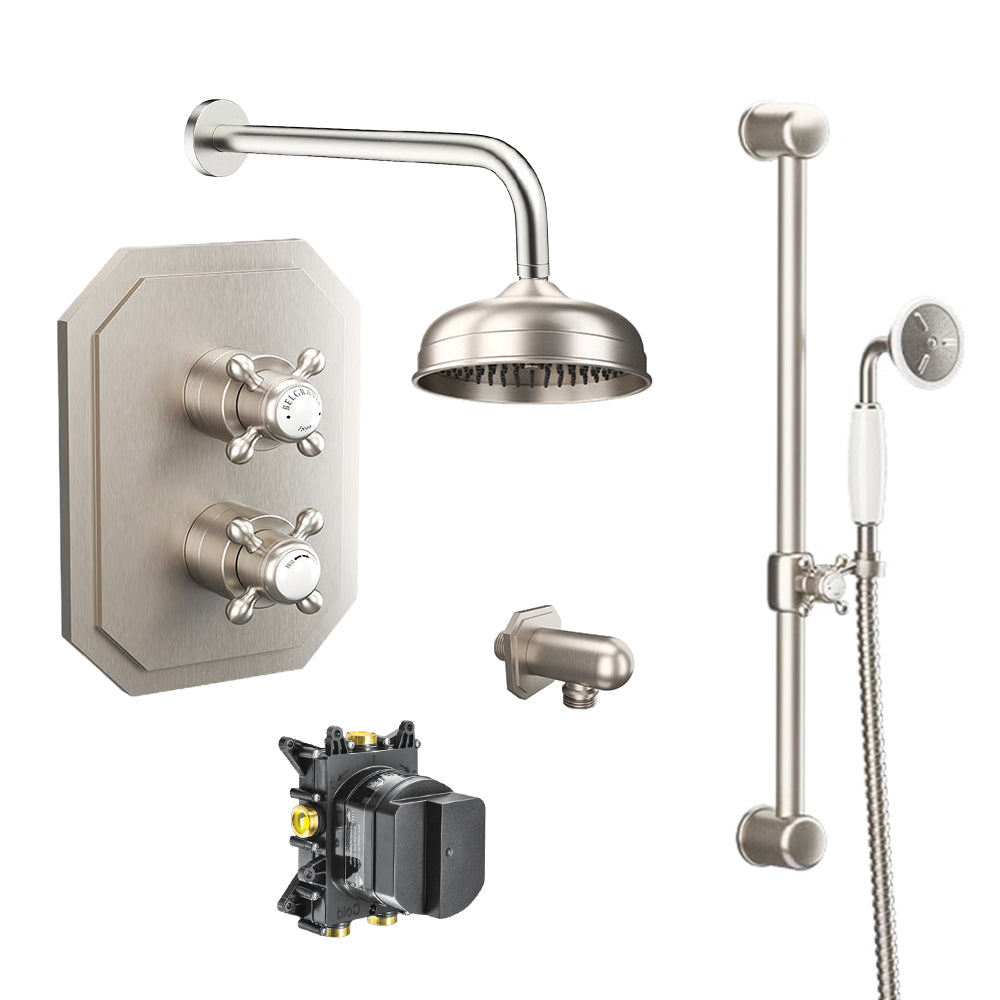

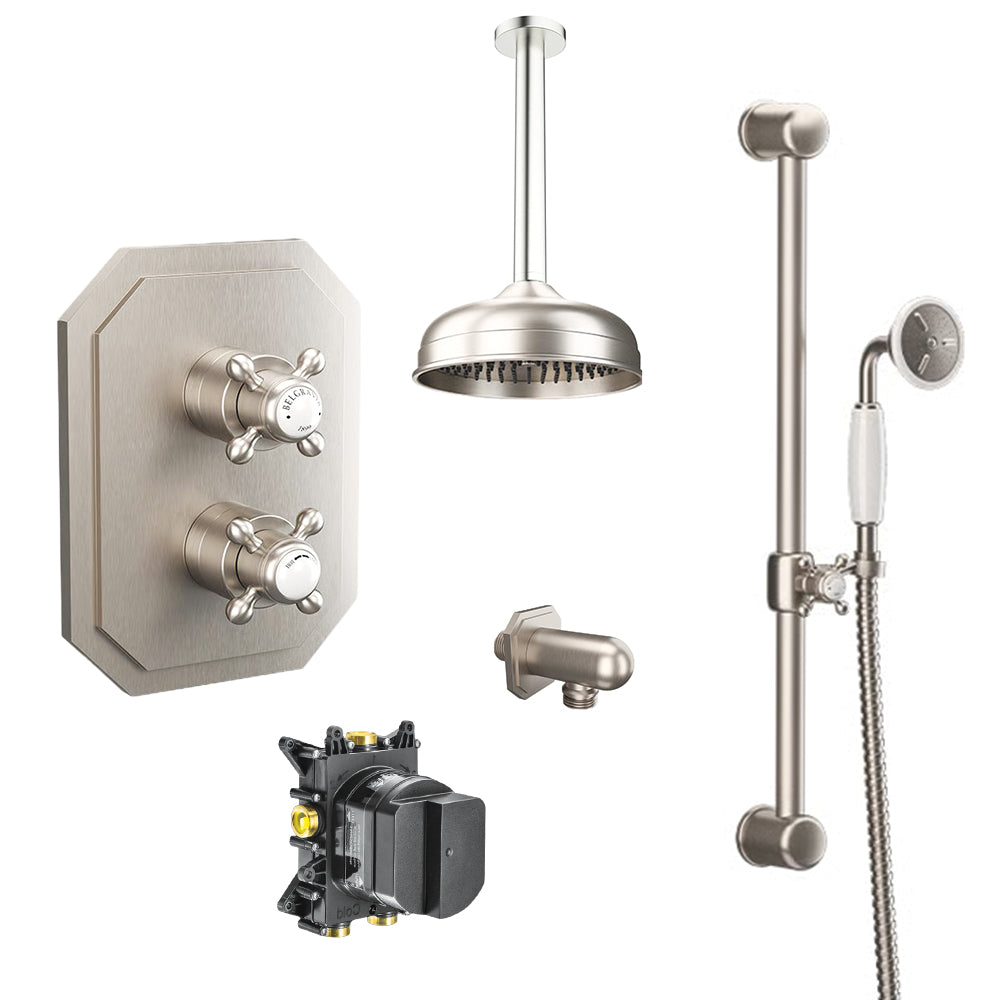

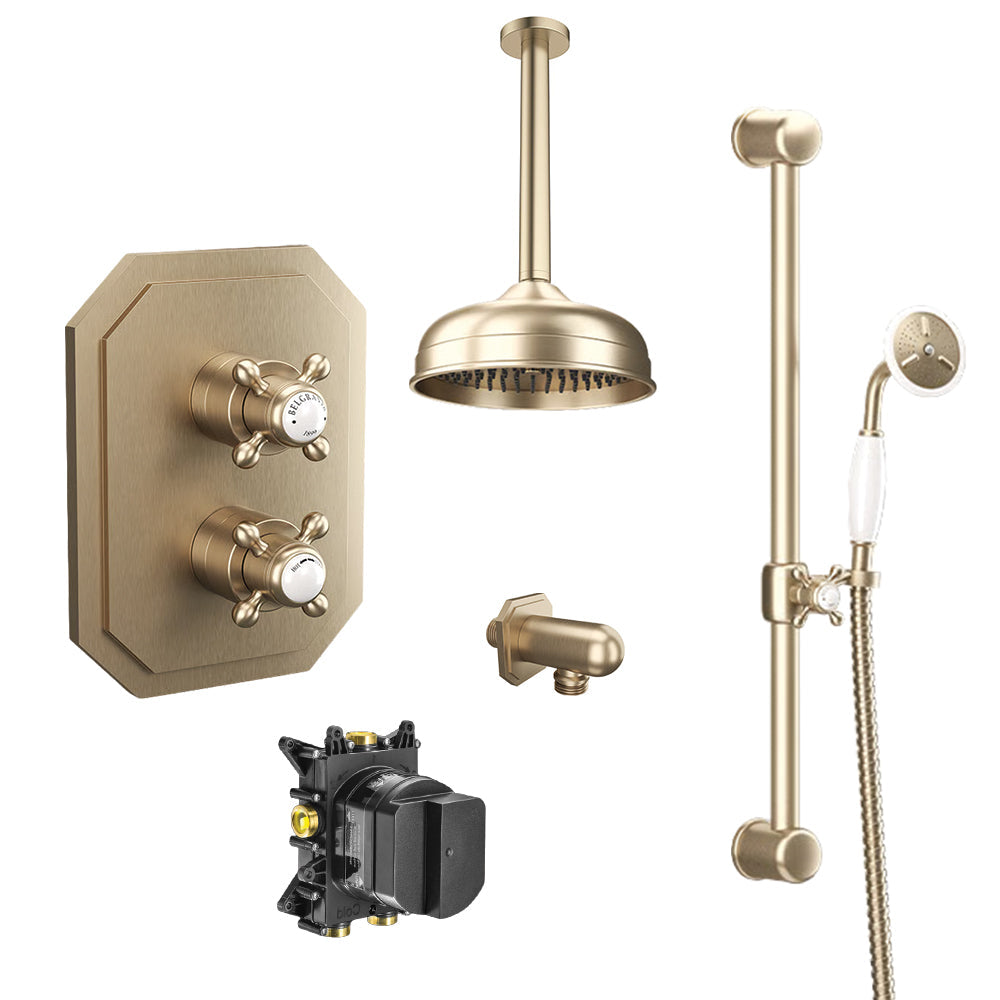

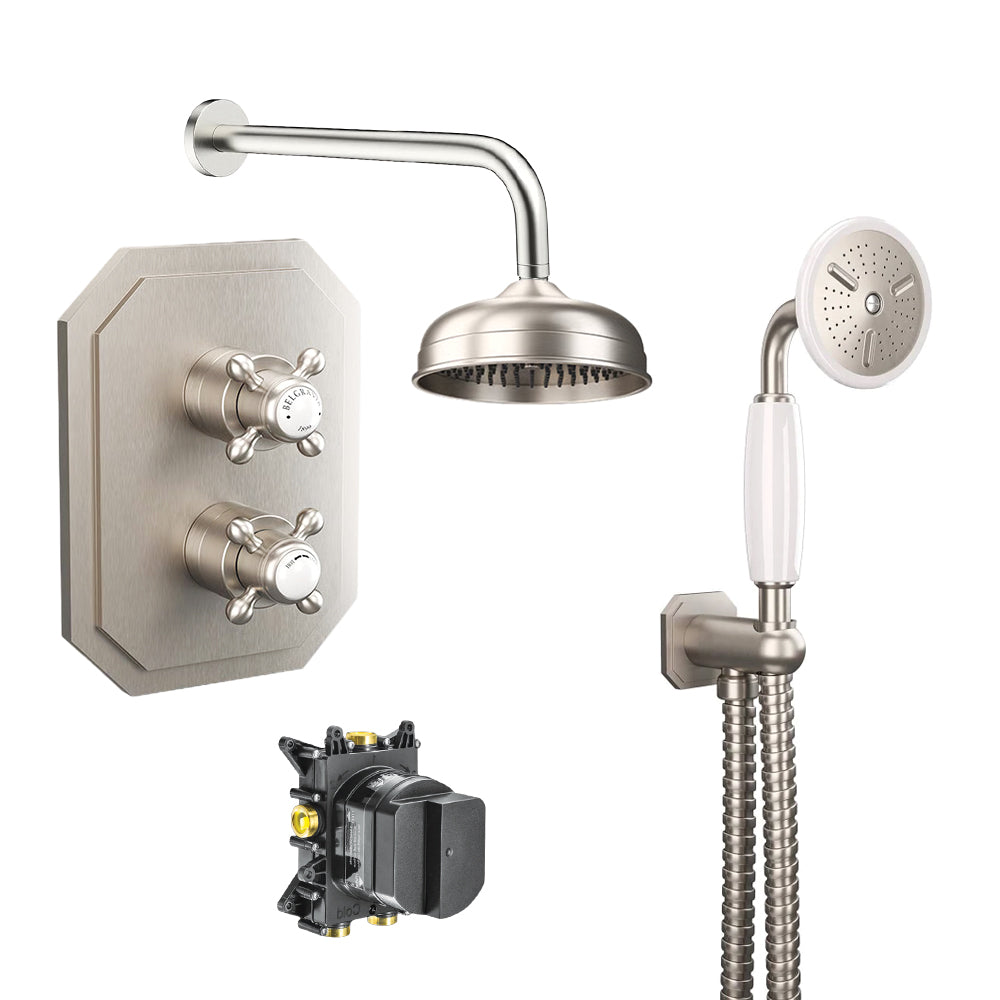

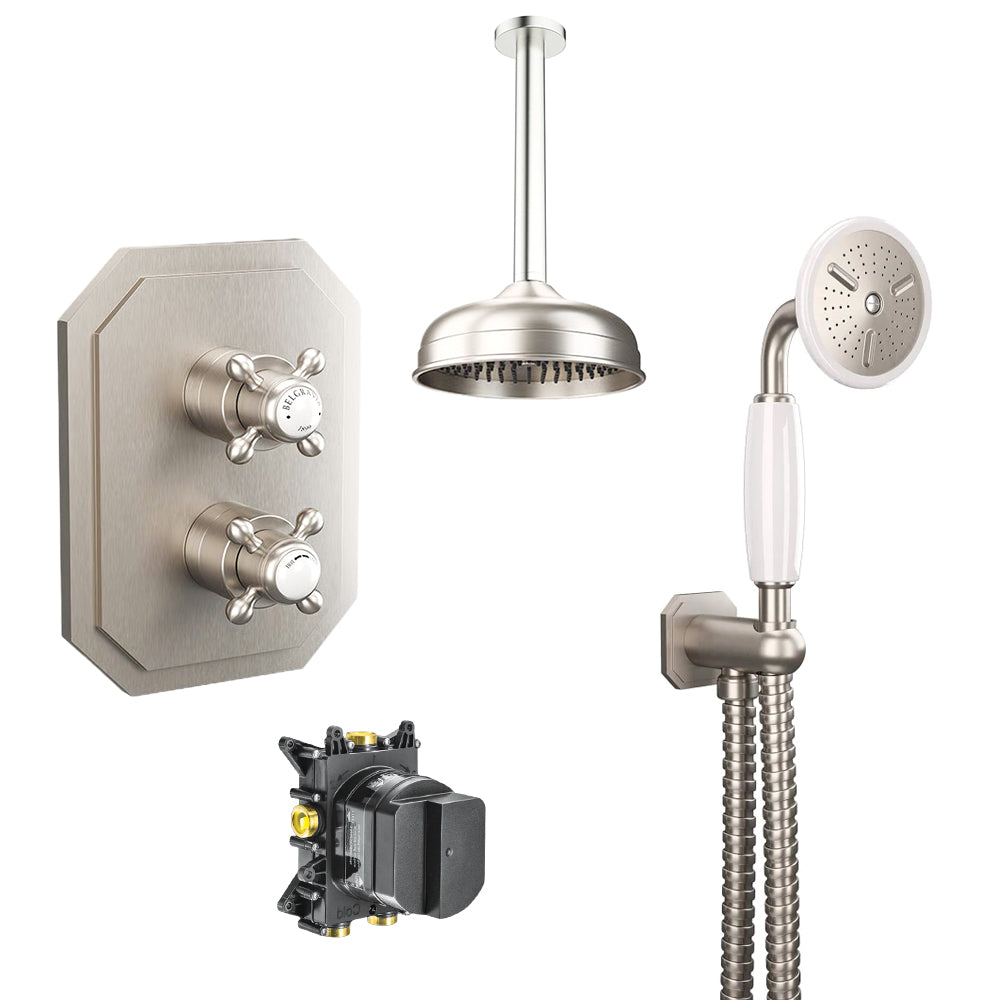

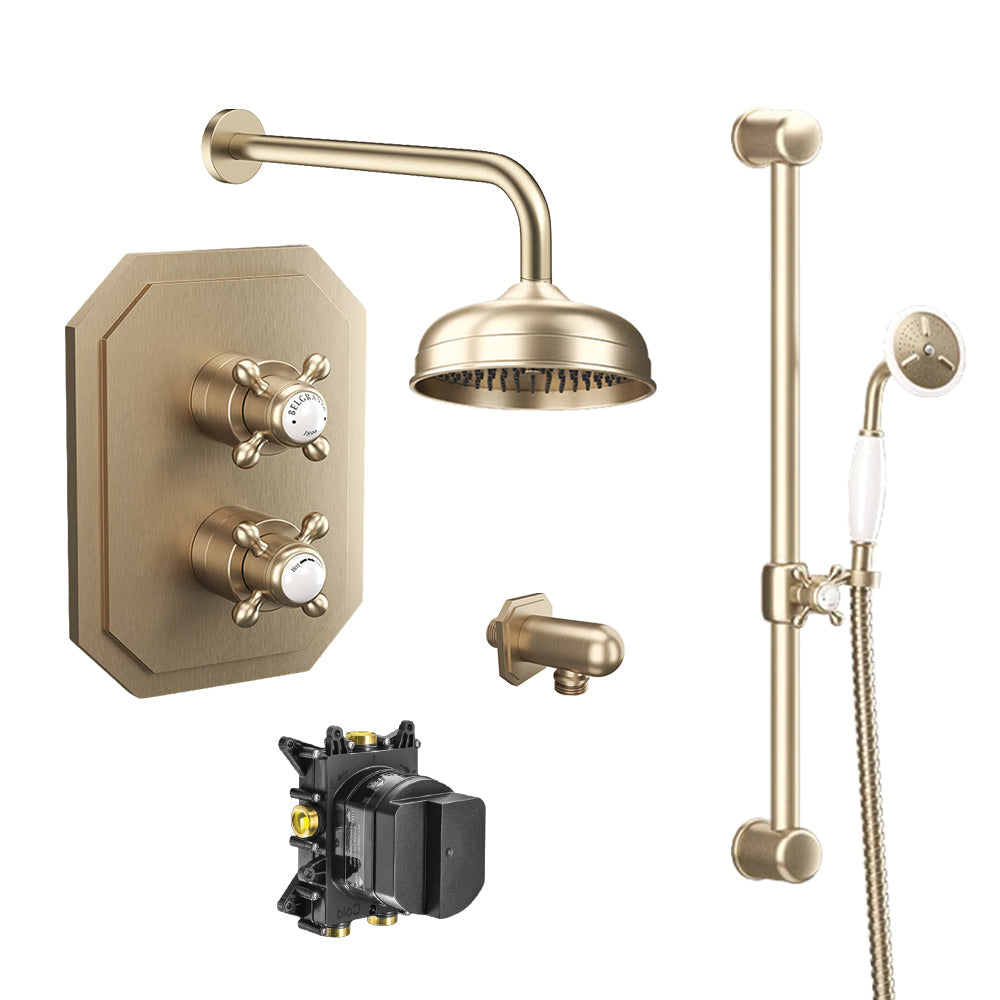

This Shower Set is comprised of:
-
2-Outlet Concealed Thermostatic Shower Valve (CROSSBOX)
- 2-Handle Crosshead Faceplate
- Slide Rail Kit or Wall Outlet Handset
- Easy Clean 200mm Fixed Shower Head with Ceiling or Wall Mounted Shower Arm
- Wall Outlet and 1.5m Hose
Finishes
- Brushed Nickel
- Brushed Brass
Thermostatic Shower Valve Features
- 1.0 bar minimum operating water pressure required
- Wall mounted installation
- Cartridge Type: ceramic disc
- Slim 60mm minimum installation depths - less preparation time for solid walls.
- 'Flush-block' testing plate included for easy pressure testing.
- Easy fix 2nd stage trim sets reduce installation times.
- Front or rear mounting options increase ease installation and flexibility.
-
Simple 2 stage fixing allows separate installation of in-wall components & trim set.
- Built in, 'Easy-switch' thermostatic module allows for simple, quick flow reversal if feeds are plumbed in the wrong way round.
- Improved flow dynamics allow 90-degree elbows to be fitted directly to outlets to create a more compact piping footprint.

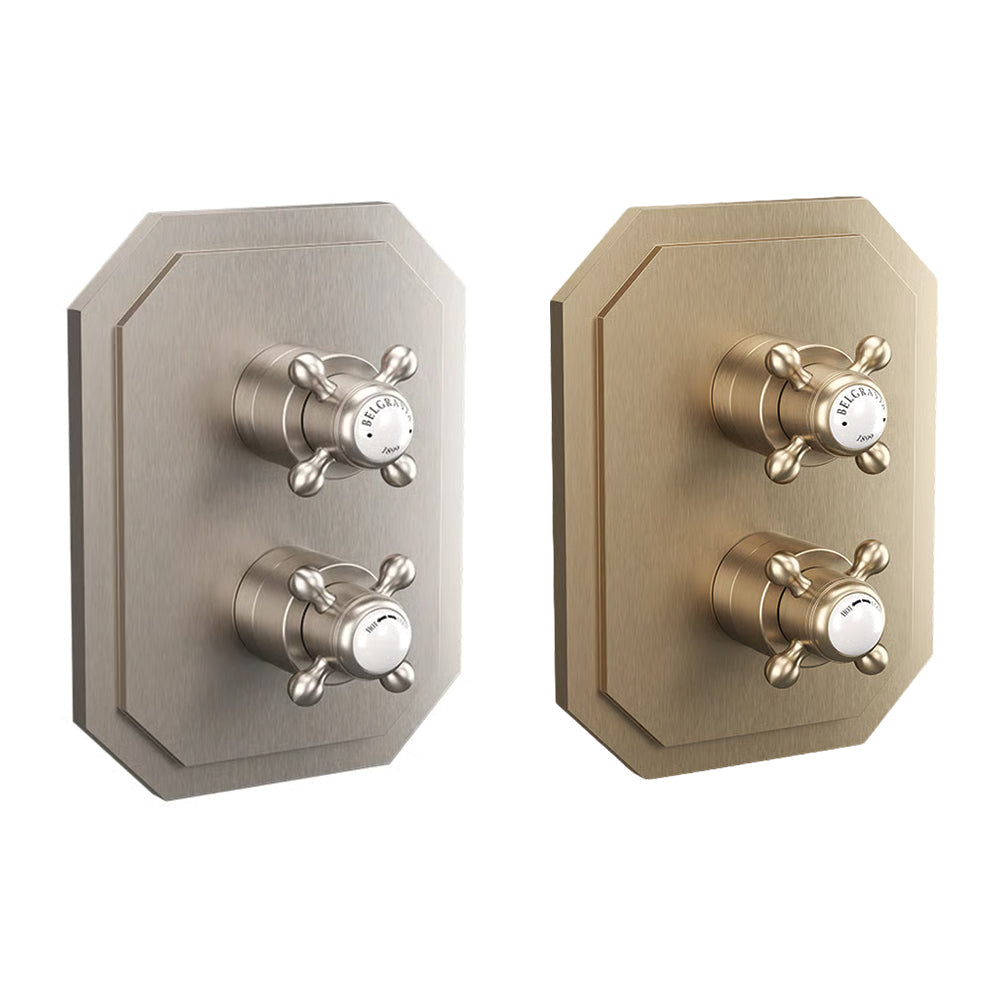

Faceplate/Trim Features
-
Dual outlet control panel
- Stylish crosshead handle with white accents
- Easy to use precision temperature adjustment
- Control water flow to handset or shower head
- Dimensions: W: 150mm x H: 200mm
- Portrait mounting only
- Hidden fixings/brackets
- Used in combination with the Crossbox Valve, included in this shower set.

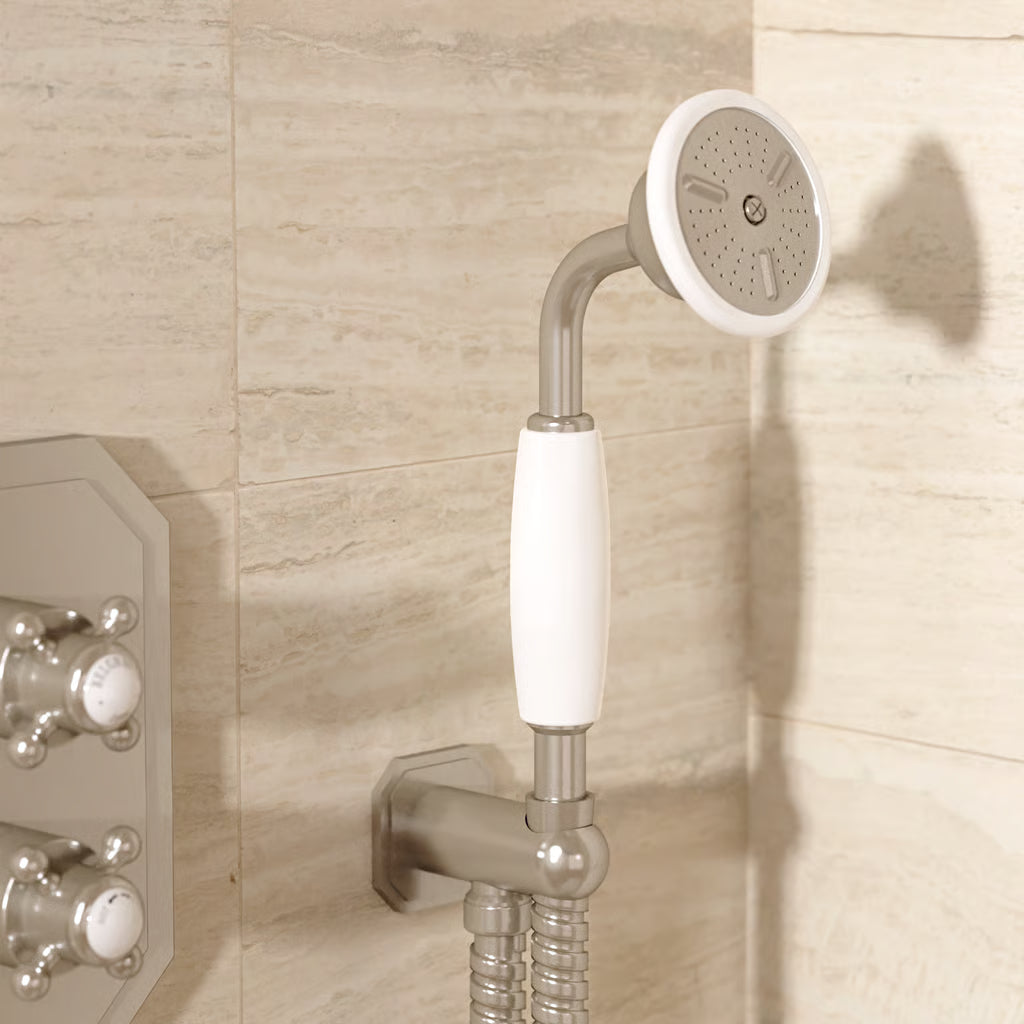

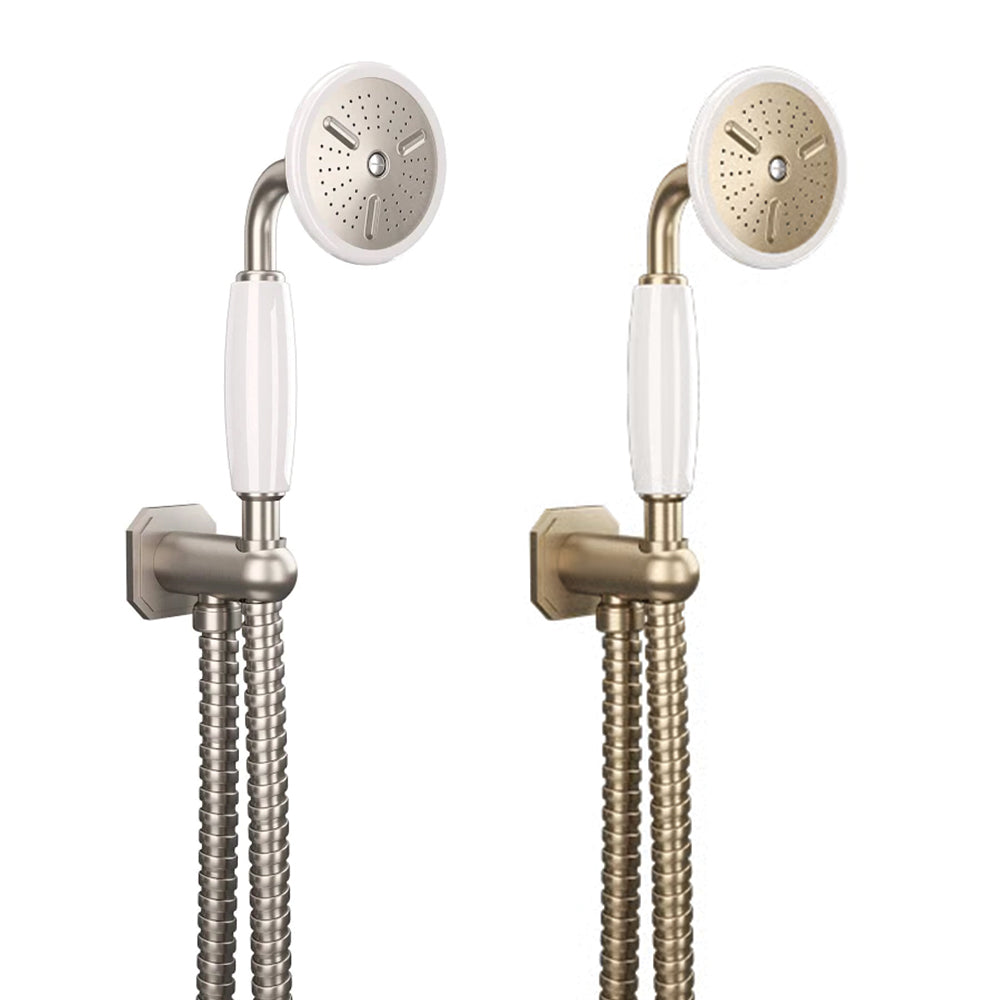

Shower Handset features
- Durable brass construction
- Easy clean head
- Smooth touch & easy grip
- Ceramic handle
- Hand polished
- Hand assembled
- Min. Water Pressure: 1.0 bar
- 1.5m hose
- Wall outlet

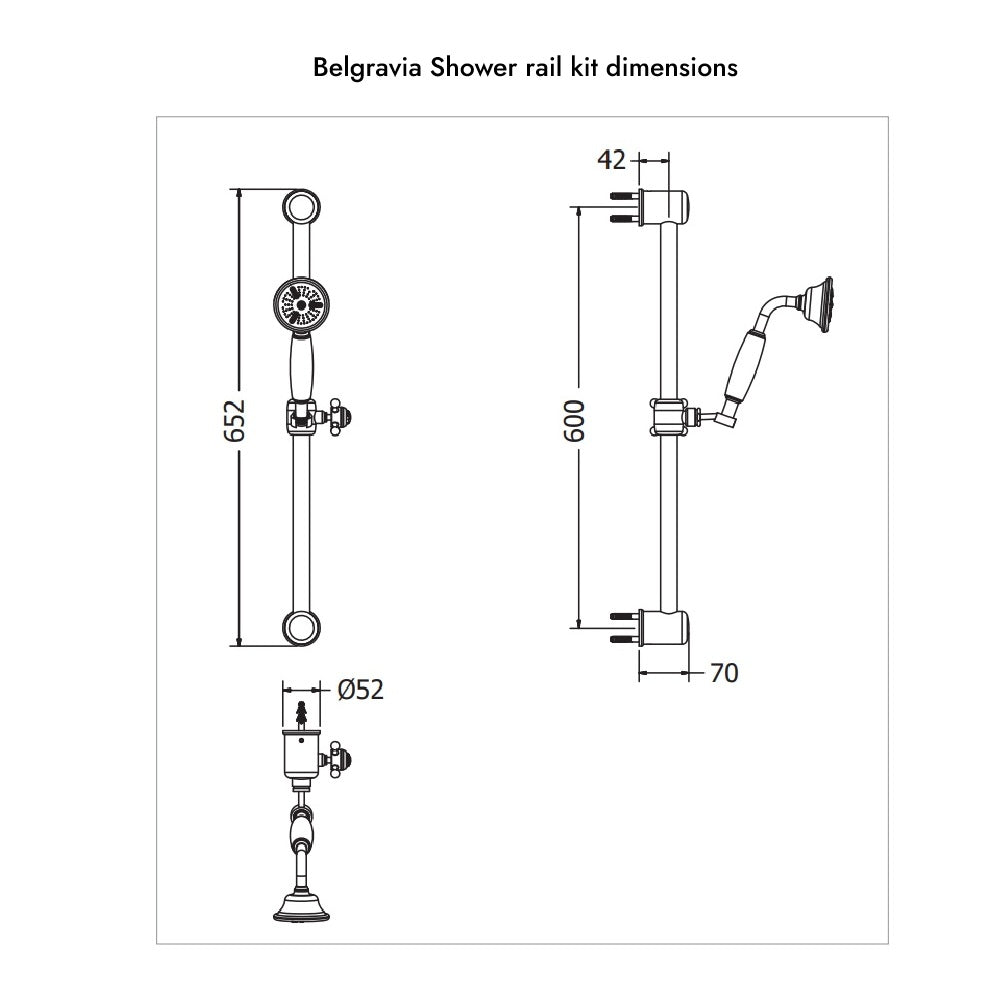

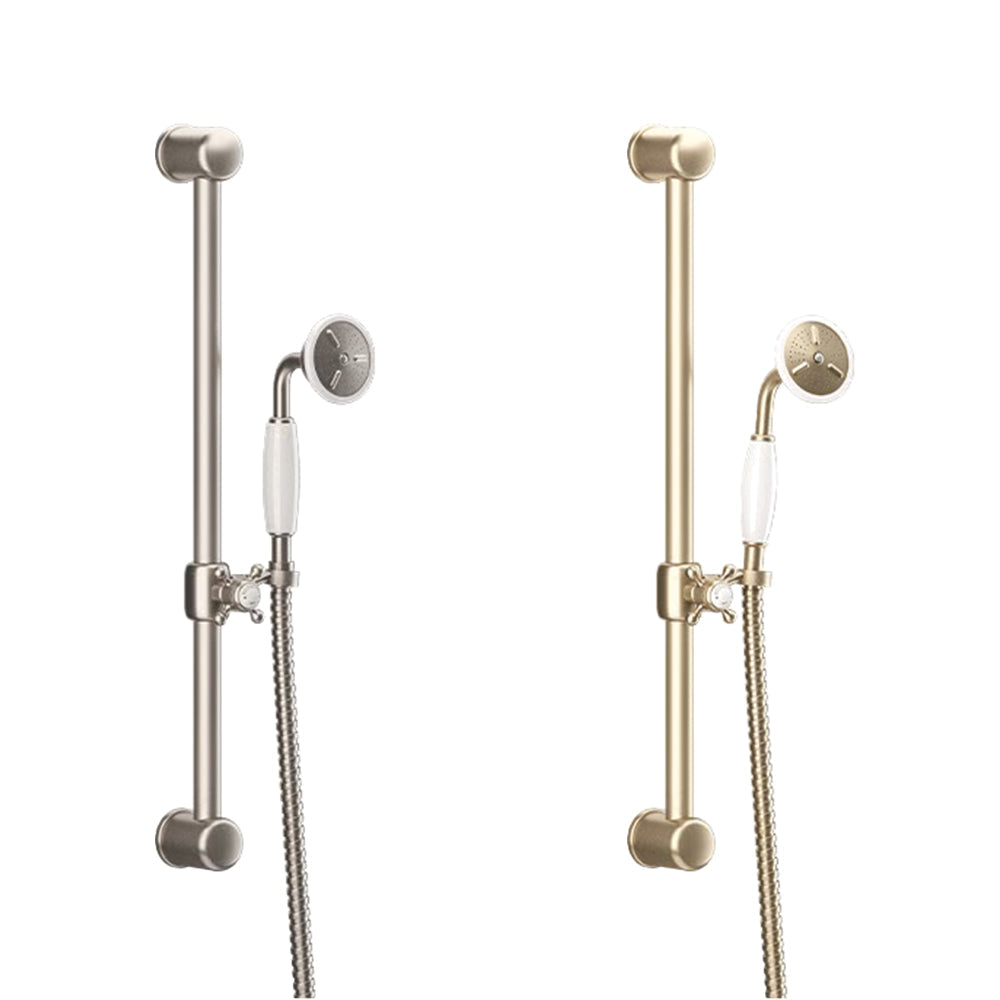

Slide Rail Kit Features
- Primary material: Brass
- Rail height: 600mm
- Single-function handset
- Height-adjustable holder bracket
- Wipe clean nozzles
- Min. Water Pressure: 1.0 bar
- Weight: 1.2kg

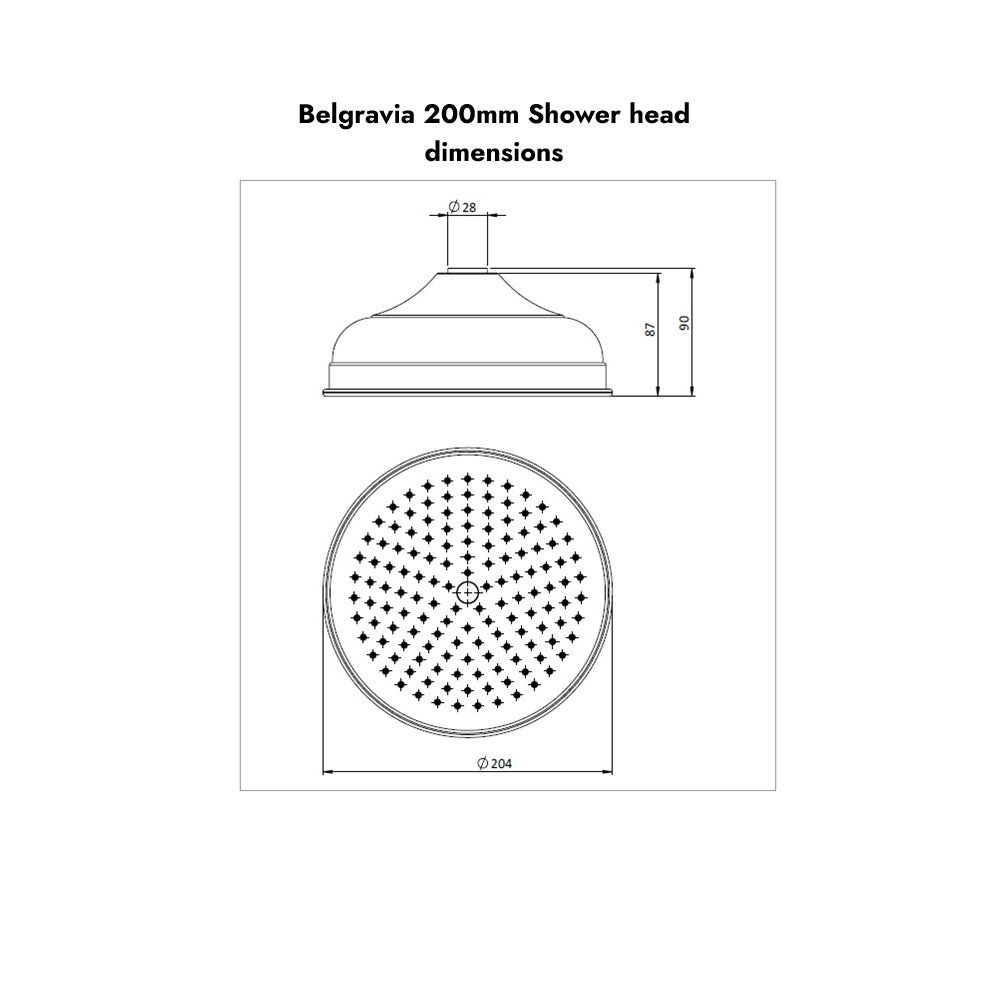

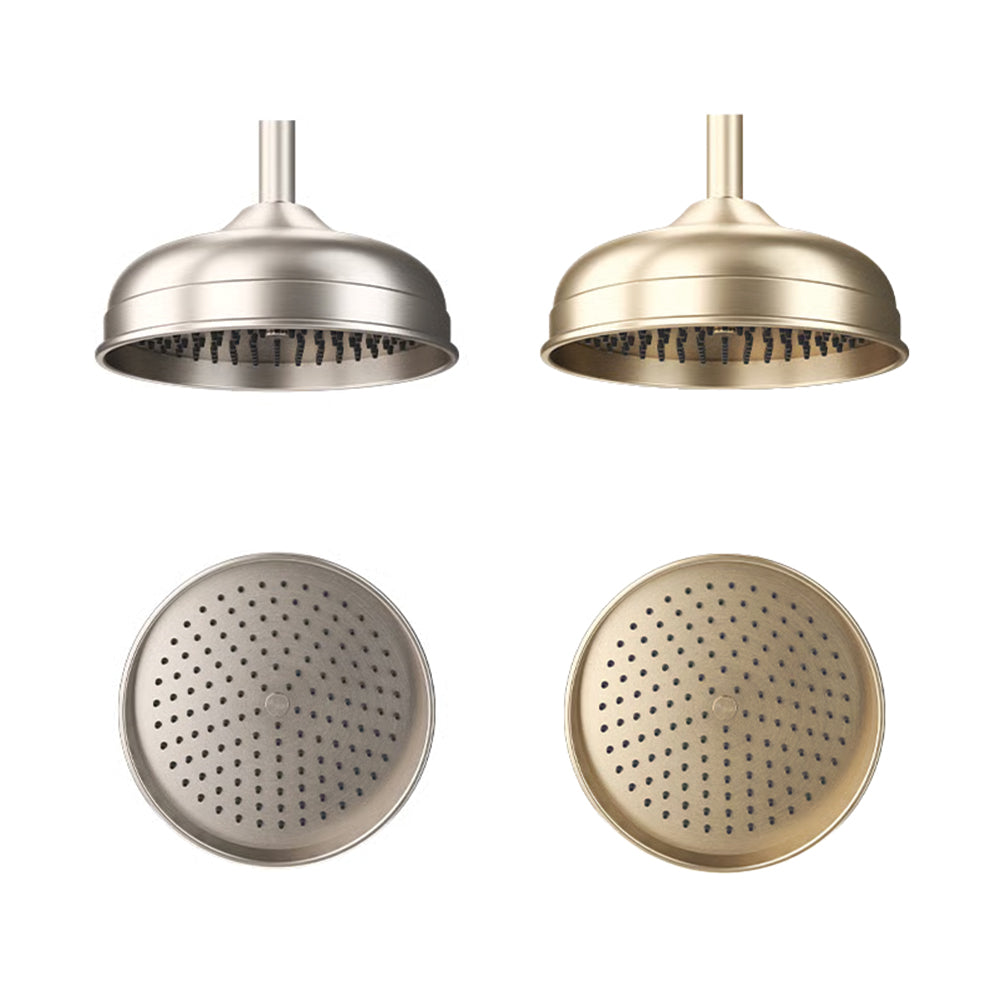

Shower Head Features
- Primary material: Brass
- 200mm diameter
- Shower type: Rainfall Shower
- Easy clean nozzles
- Min. Water Pressure: 1.0 bar
- Head Only Height: 90mm
- Weight: 1.25kg
Shower Arm Features
- Material: Brass
- Finish texture: Brushed
- Style shape: Round
- Choice of Wall or Ceiling Mounted

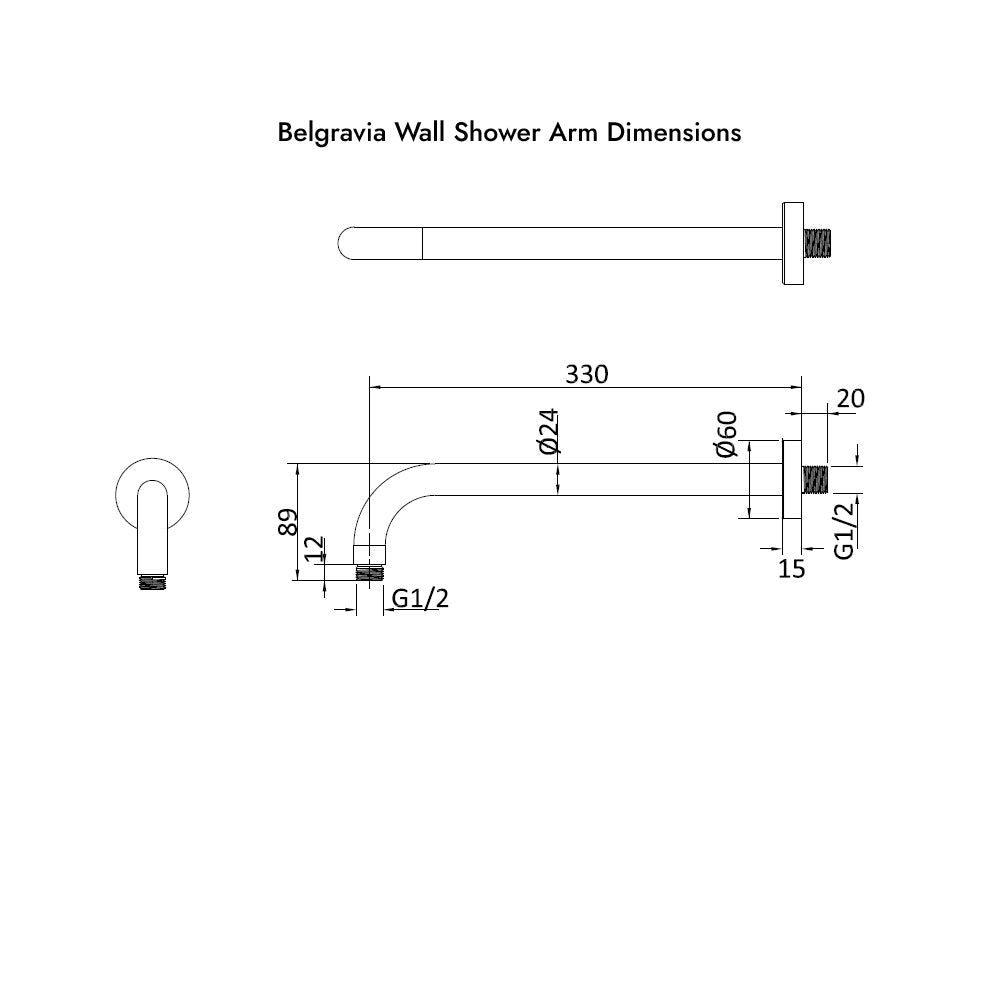

- Wall arm dimensions:
- Height: 89mm, Length: 330mm

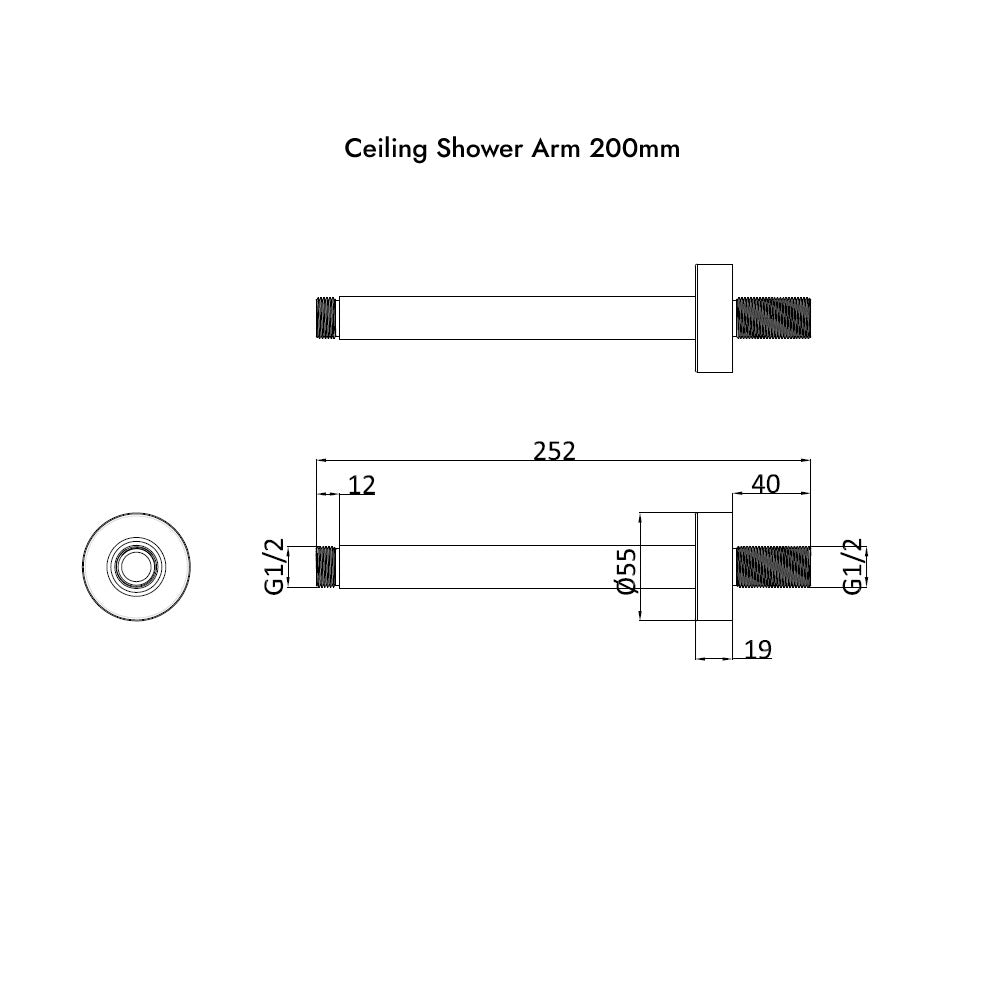

- Ceiling arm dimensions:
- Height: 200mm, Width: 55mm
