Axor Citterio C 3-Hole Bath Mixer For Concealed Installation Wall-Mounted With Hand Shower

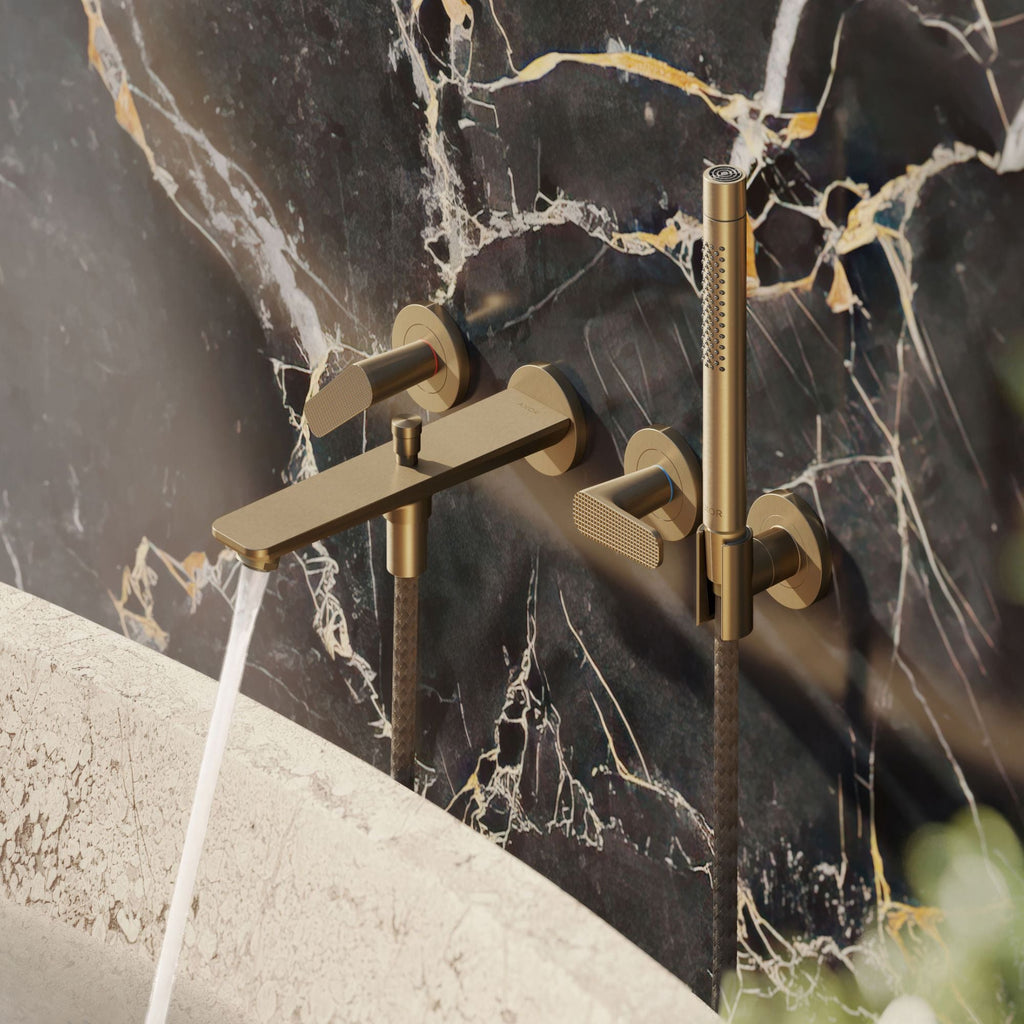

Redefine luxury in your bathroom and indulge in the epitome of high-end quality design with the Axor Citterio C range. The 3 Hole Bath Shower Mixer With Handset makes a true statement piece in any modern bathroom.
Featuring a long bath spout and two ergonomic lever handles on either side, each with a cubic cut texture for a decorative touch. It is complemented by a sleek pencil shower handset offering Rain and MonoRain spray modes, along with a convenient diverter that lets you switch between the bath spout and shower handset.
Its slender, soft, and sensuous features meet the need for greater comfort, reduced materiality, and a lasting, contemporary design that works in any bathroom setting. Available in a multitude of amazing finishes, you can be confident that the Axor Citterio C range of bathroom products will withstand the test of time providing you with 5 year manufacturer's guarantee.
Bath mixer finishes

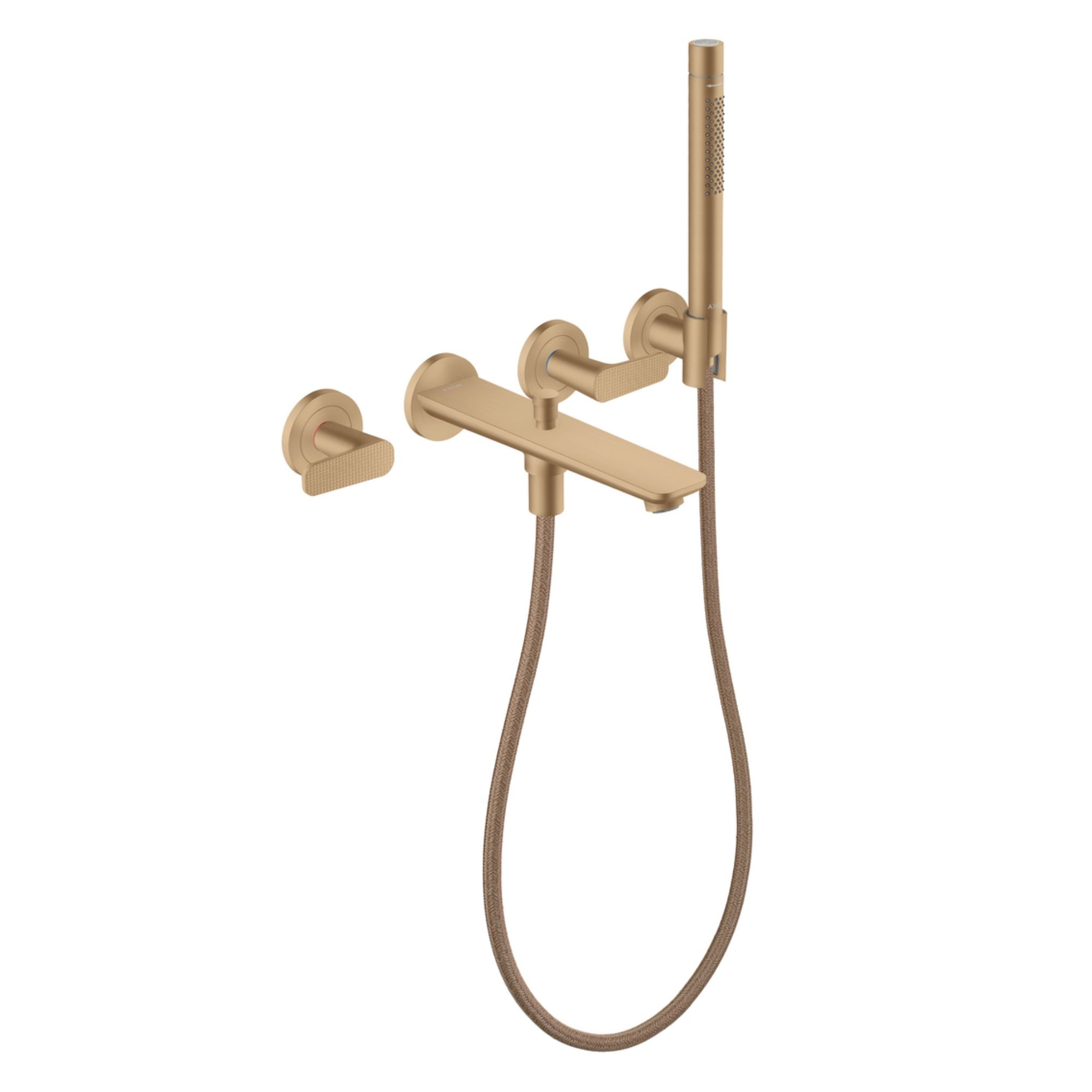

- Brushed Bronze
- Brushed Brass

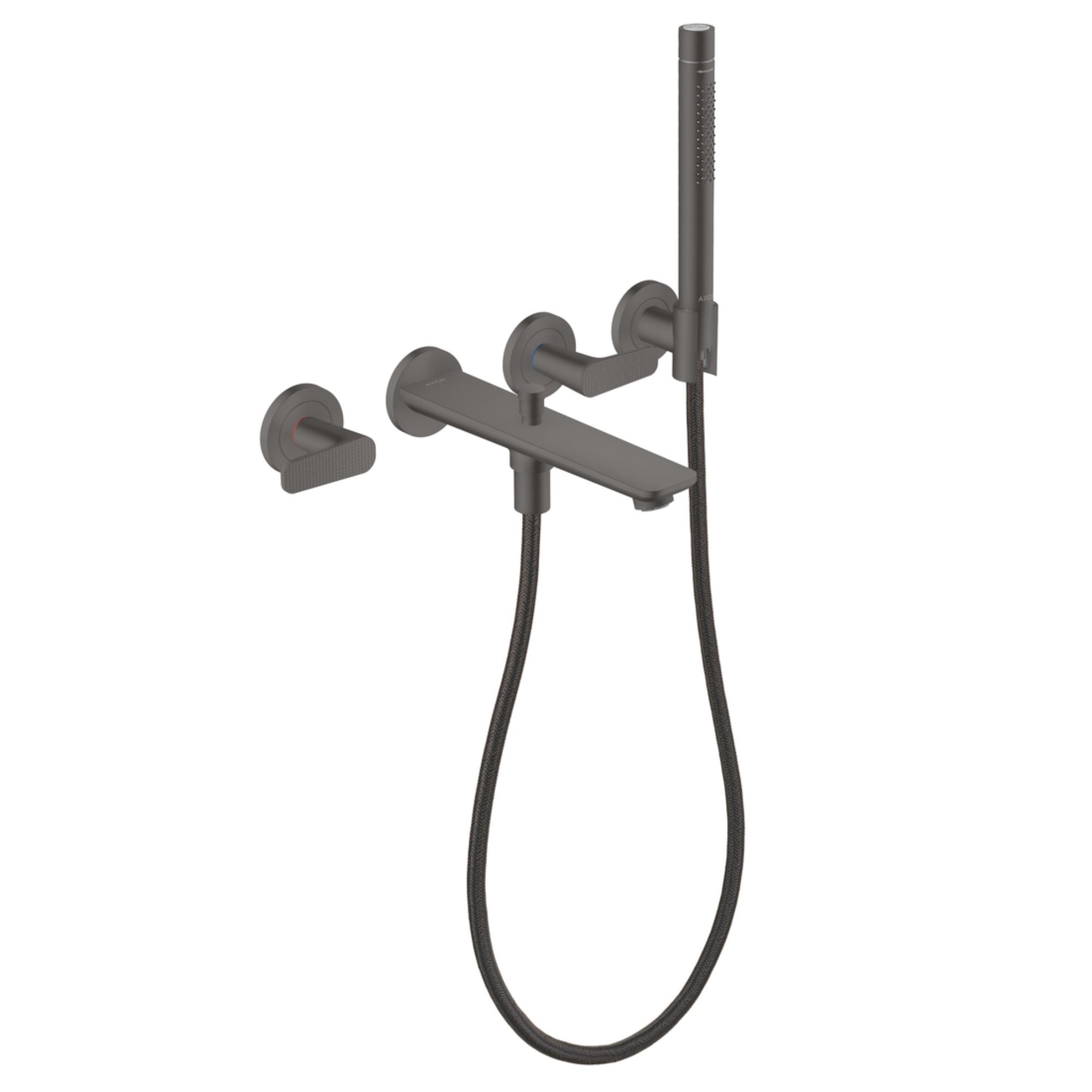

- Brushed Black Chrome

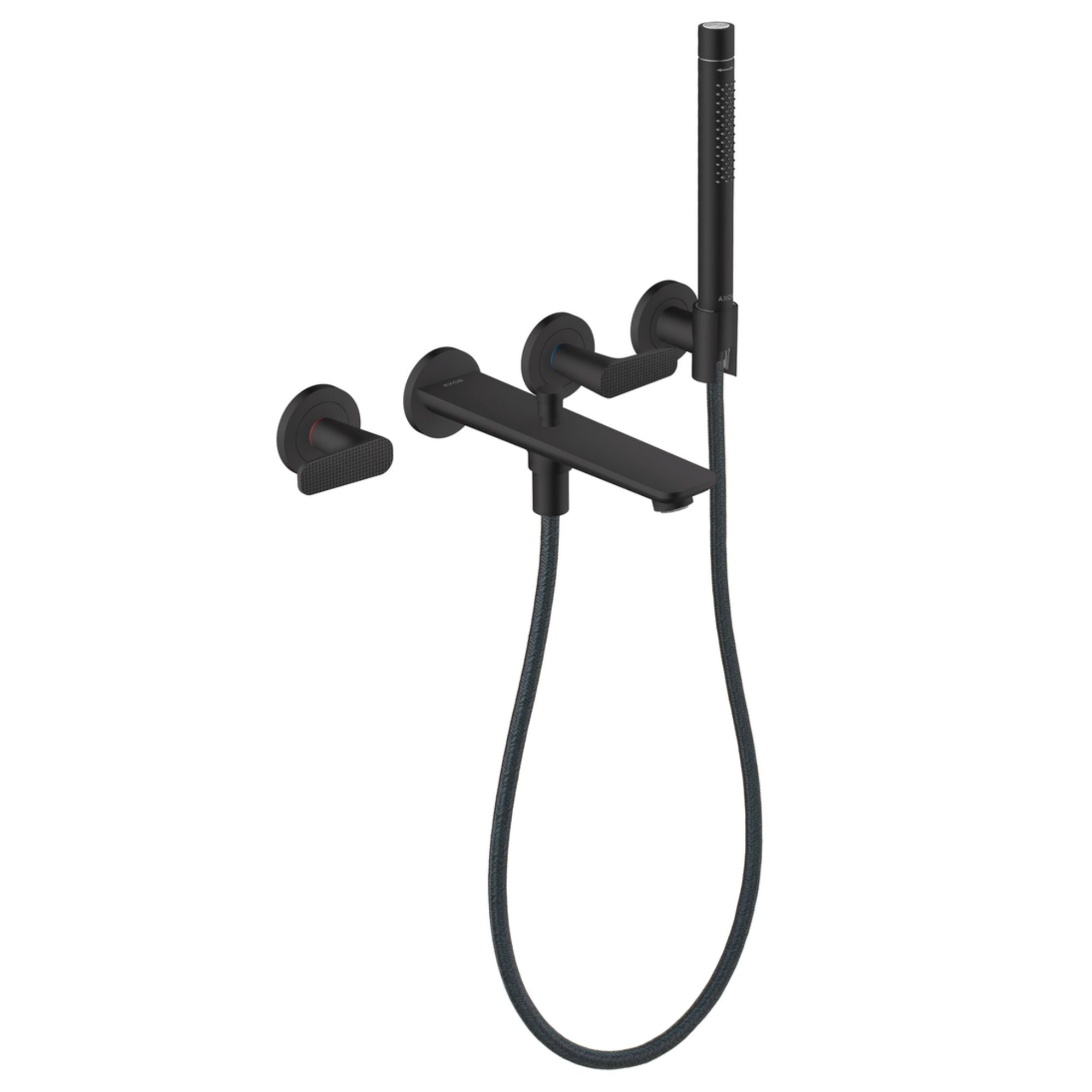

- Matt Black

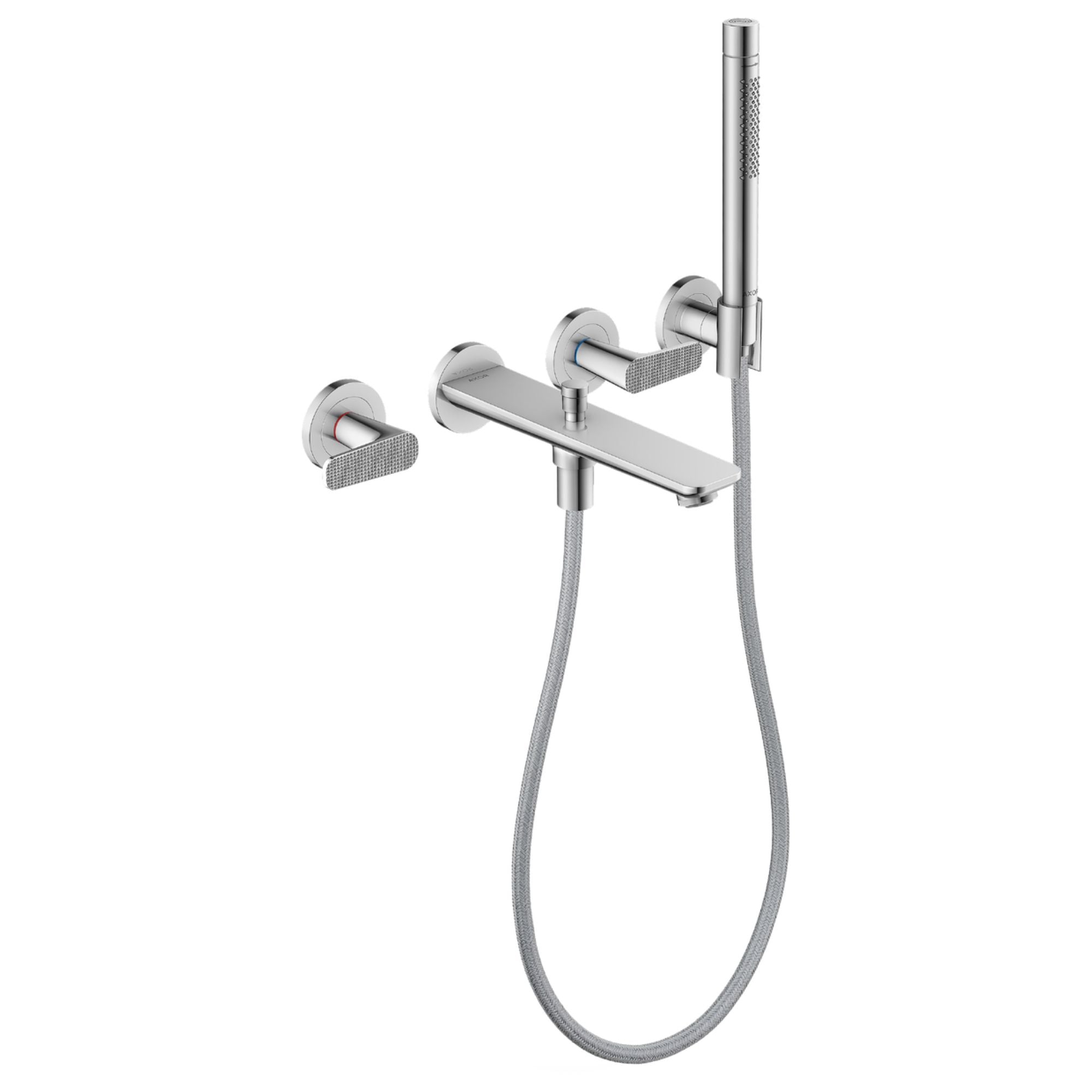

- Chrome
- Polished Gold Optic
|

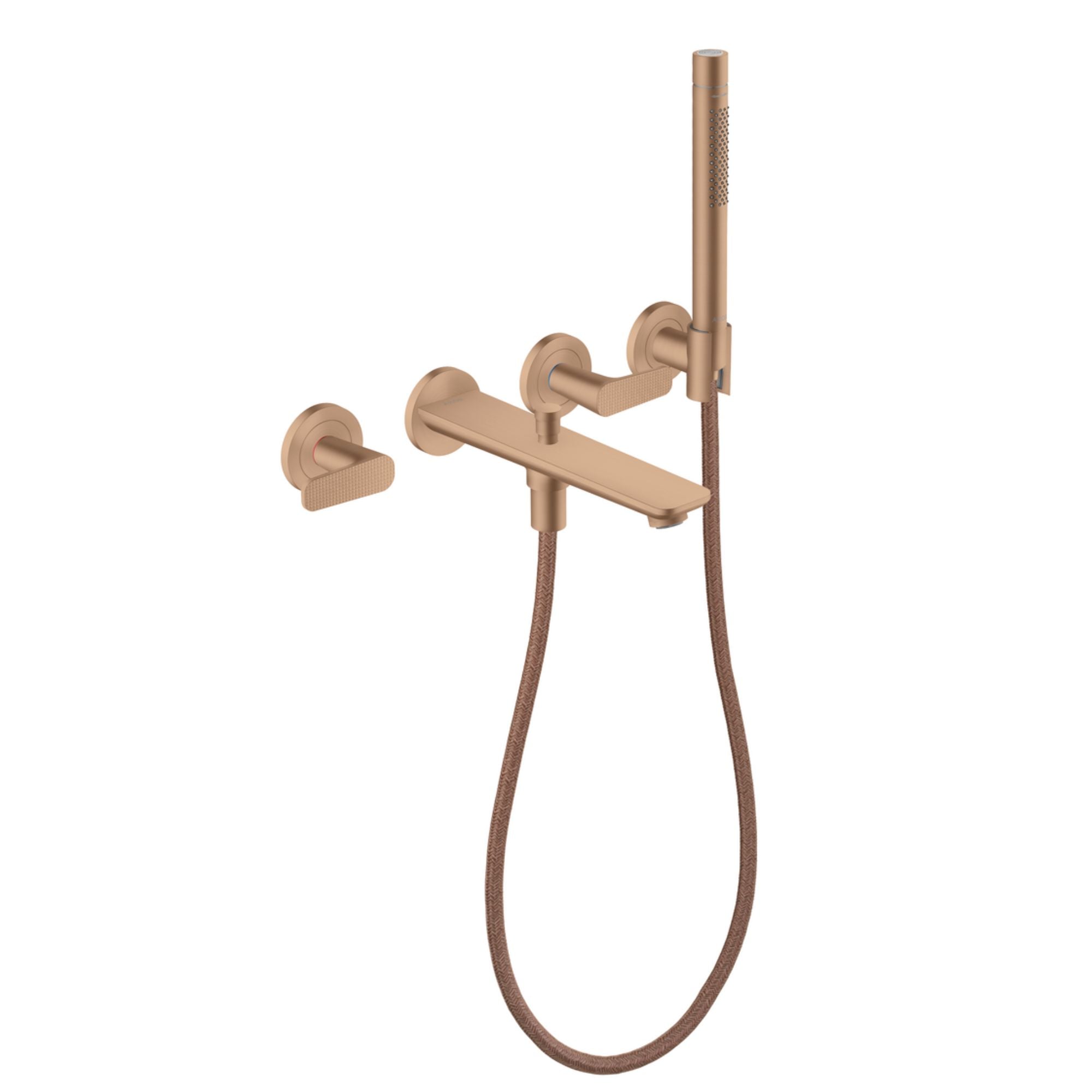

- Brushed Red Gold

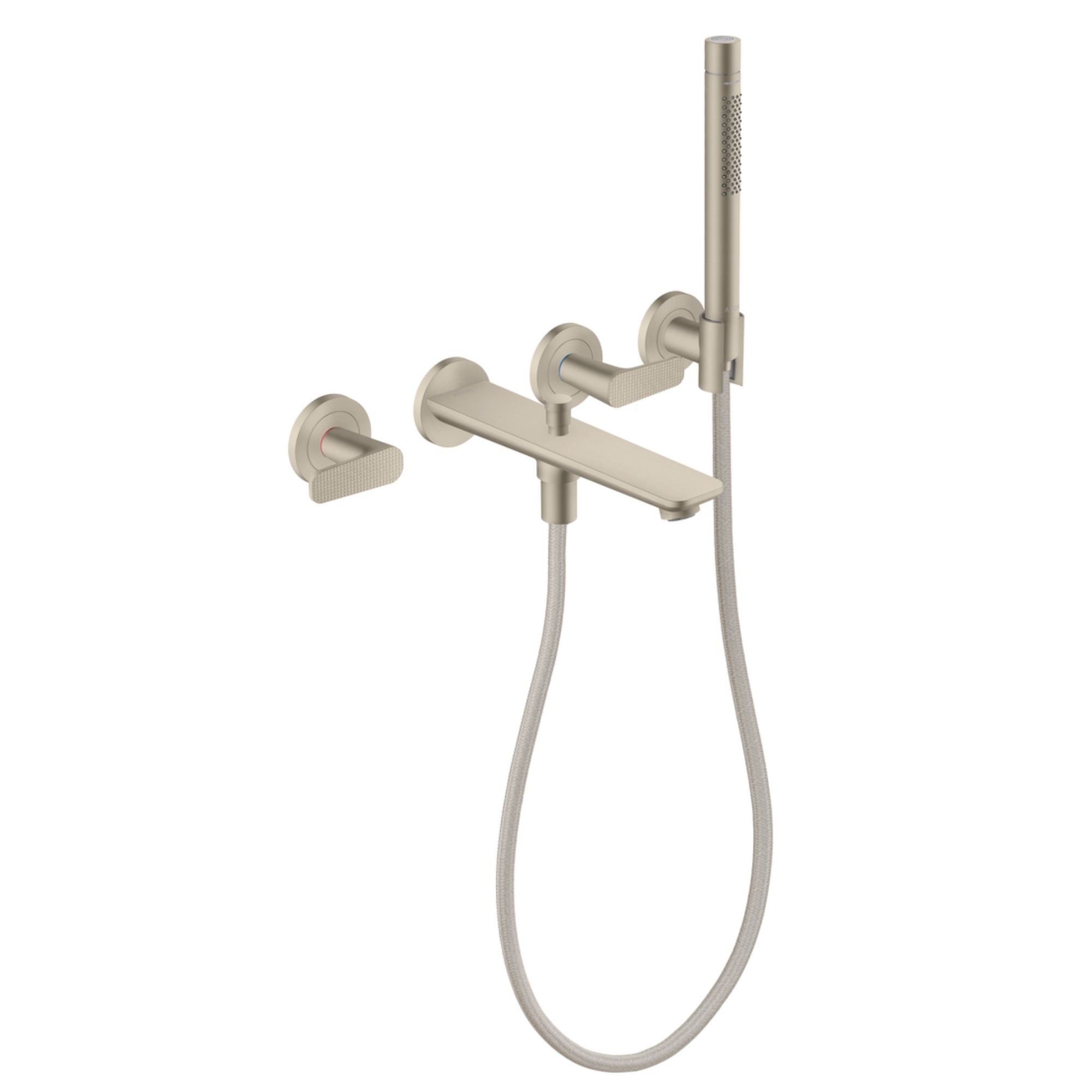

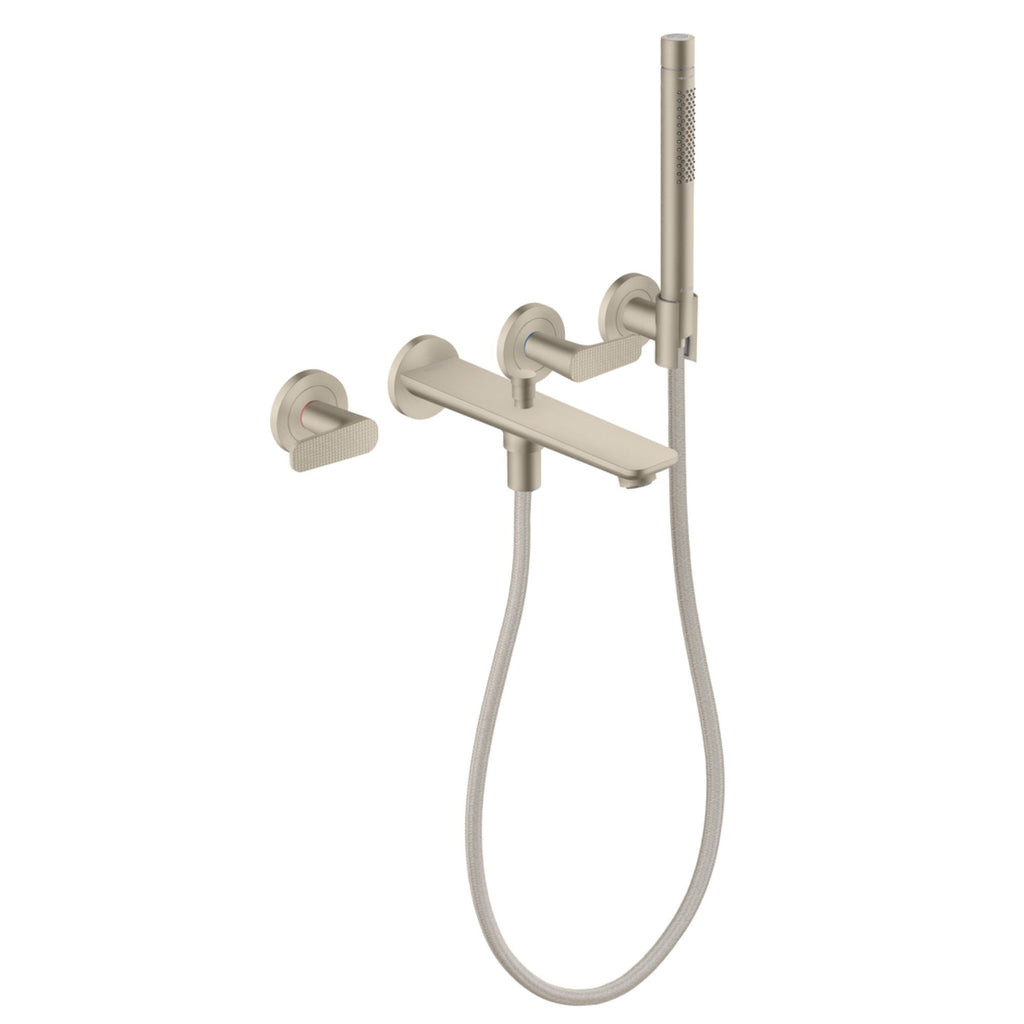

- Brushed Nickel

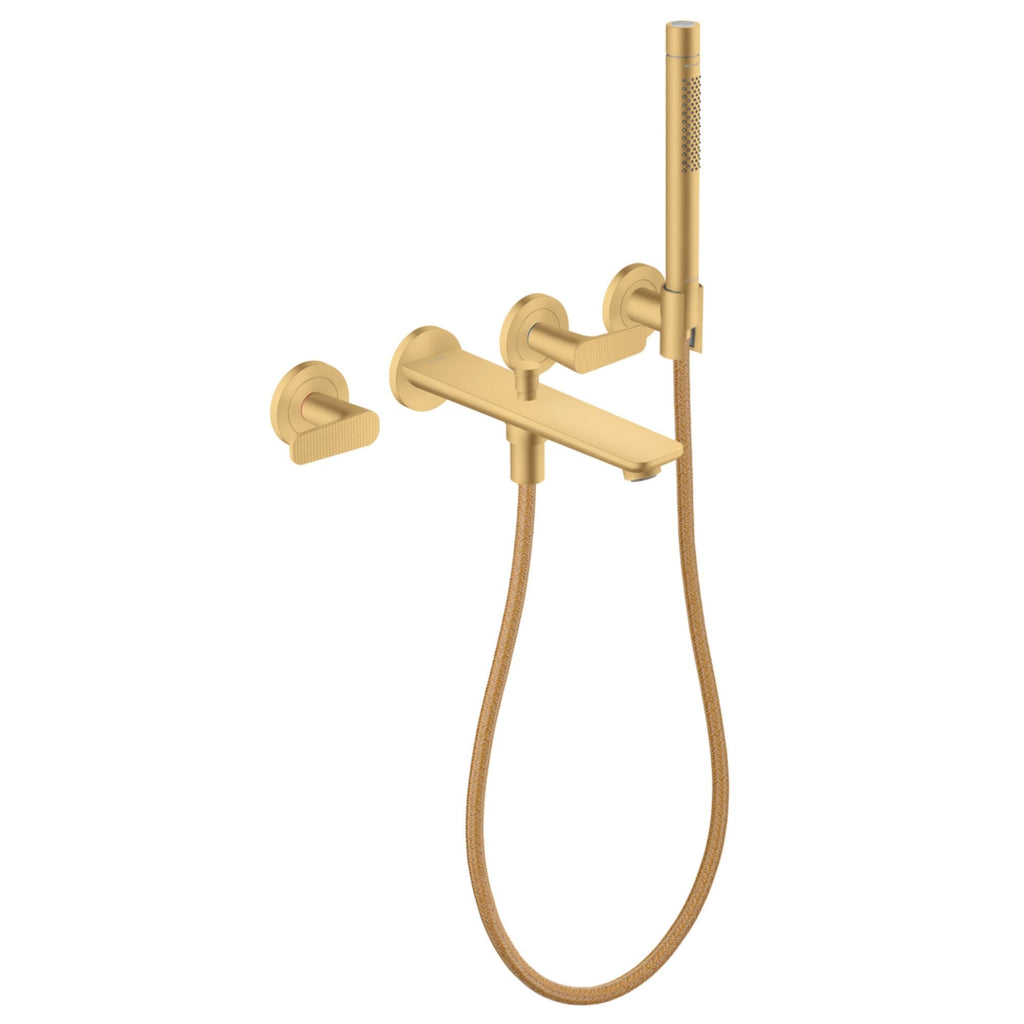

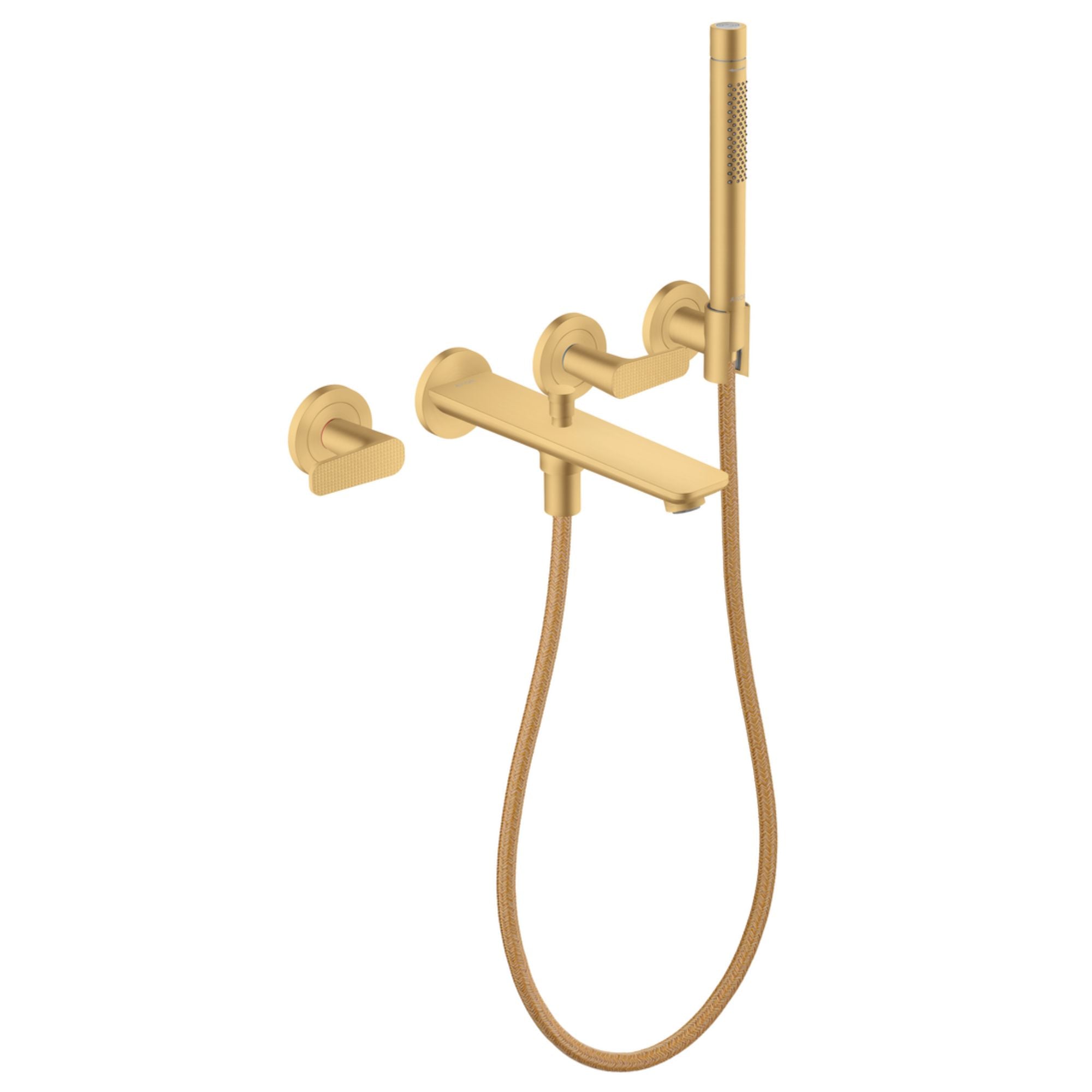

- Brushed Gold Optic
- Polished Red Gold

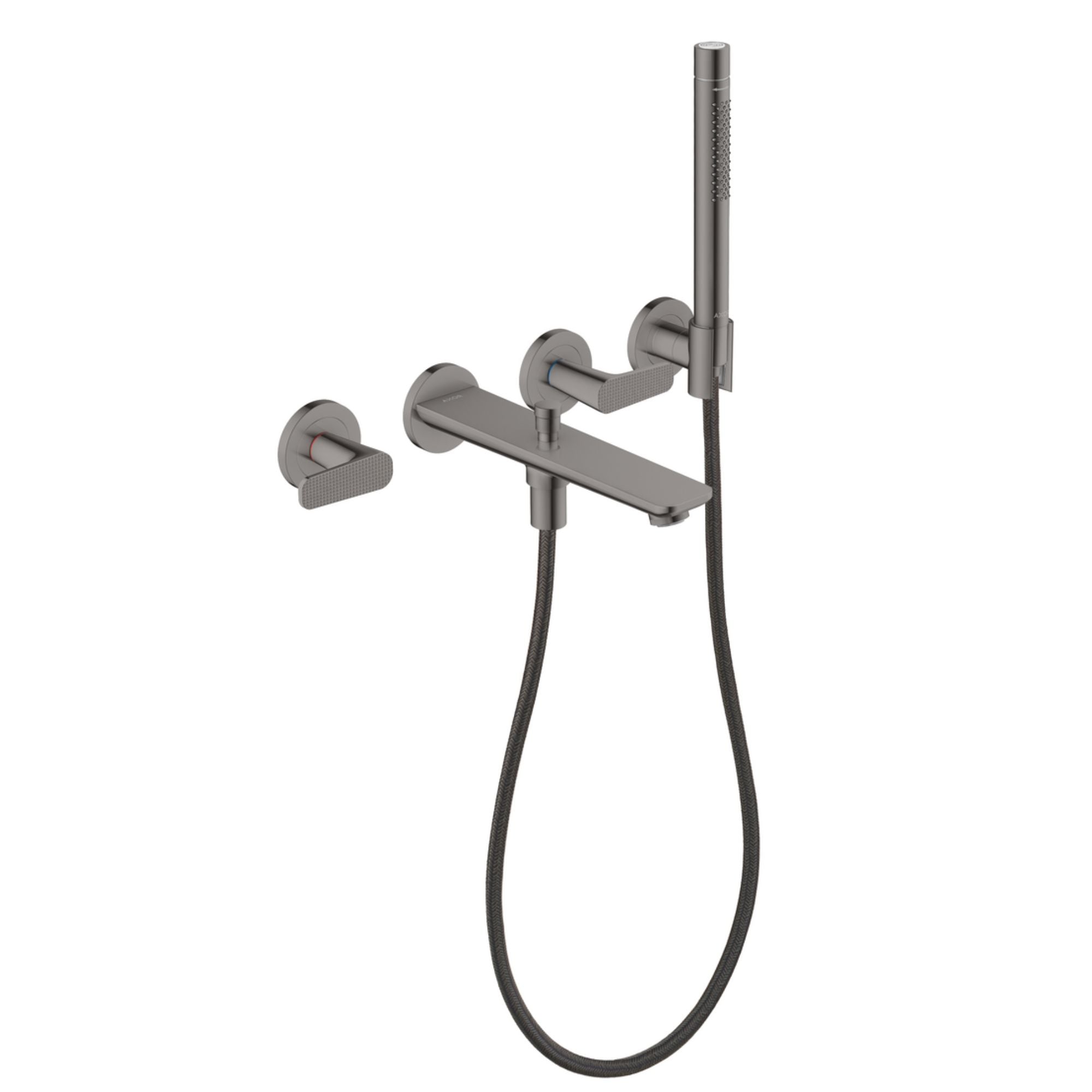

- Polished Black Chrome

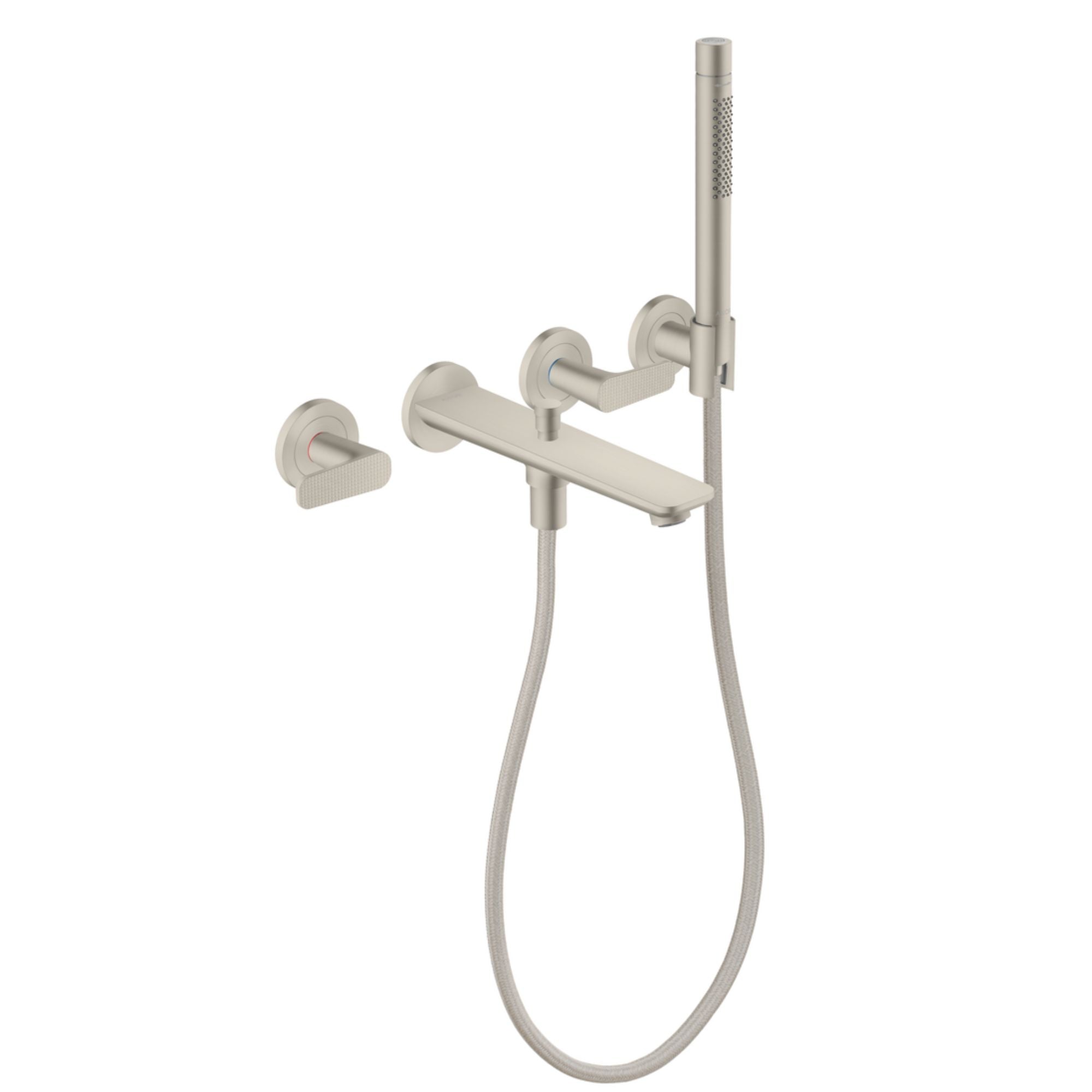

- Stainless Steel Optic
|
Bath mixer features
- Consists of: 3-hole bath mixer, hand shower, shower holder, shower hose
- Comes with basic installation, behind the wall part
- Cubic Cut textured lever handles
- Wall-mounted

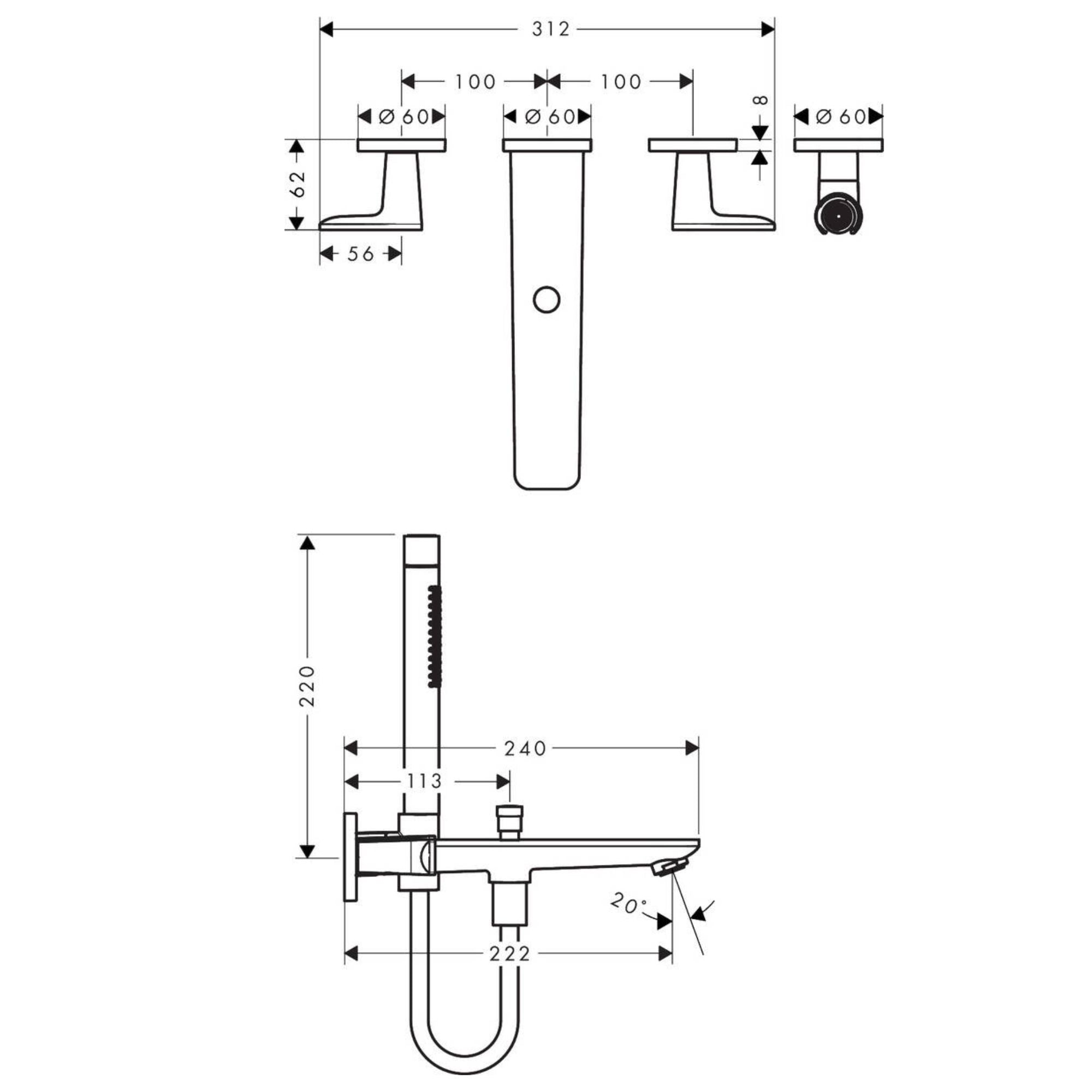

- Projection: 222mm
- Bath spout height: 240mm
- Pencil hand shower length: 220mm
- Spray pattern: normal spray
- Spray type hand shower: Rain, MonoRain
- Maximum flow rate (at 3 bar): 20,1 l/min
- Flow rate for bath spout at 3 bar: 20 l/min
- Flow rate of hand shower at 3 bar: 9,7 l/min
- Ceramic valves hot/cold 90° and non-return
- Diverter with automatic resetting
- Connection type: basic set
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- 5-year manufacturer's guarantee
Additional Information

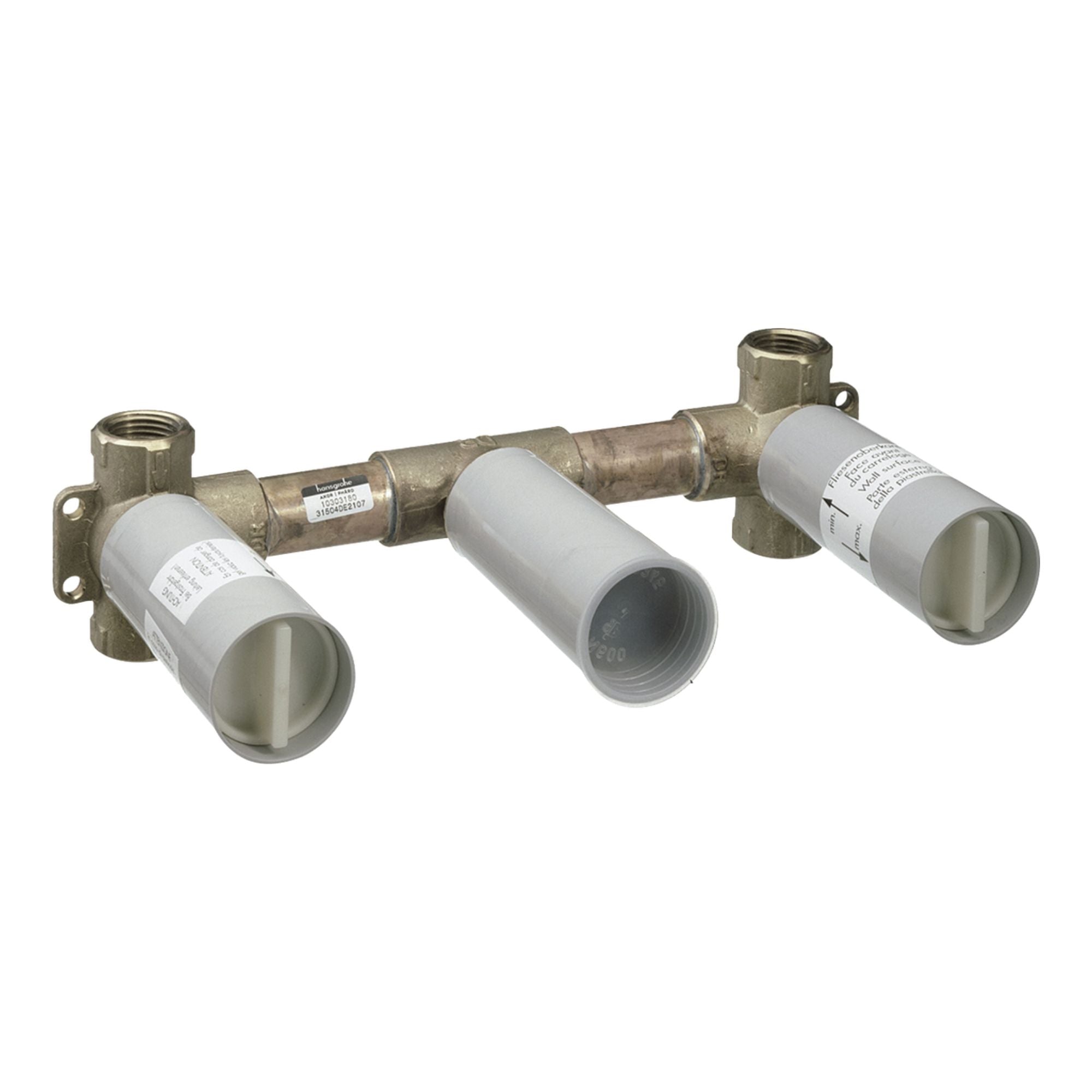

Required for operation is the first-fix, behind the wall installation part that comes supplied with your purchase. Designed for concealed installation, you can choose to have the spout on the left or right side.

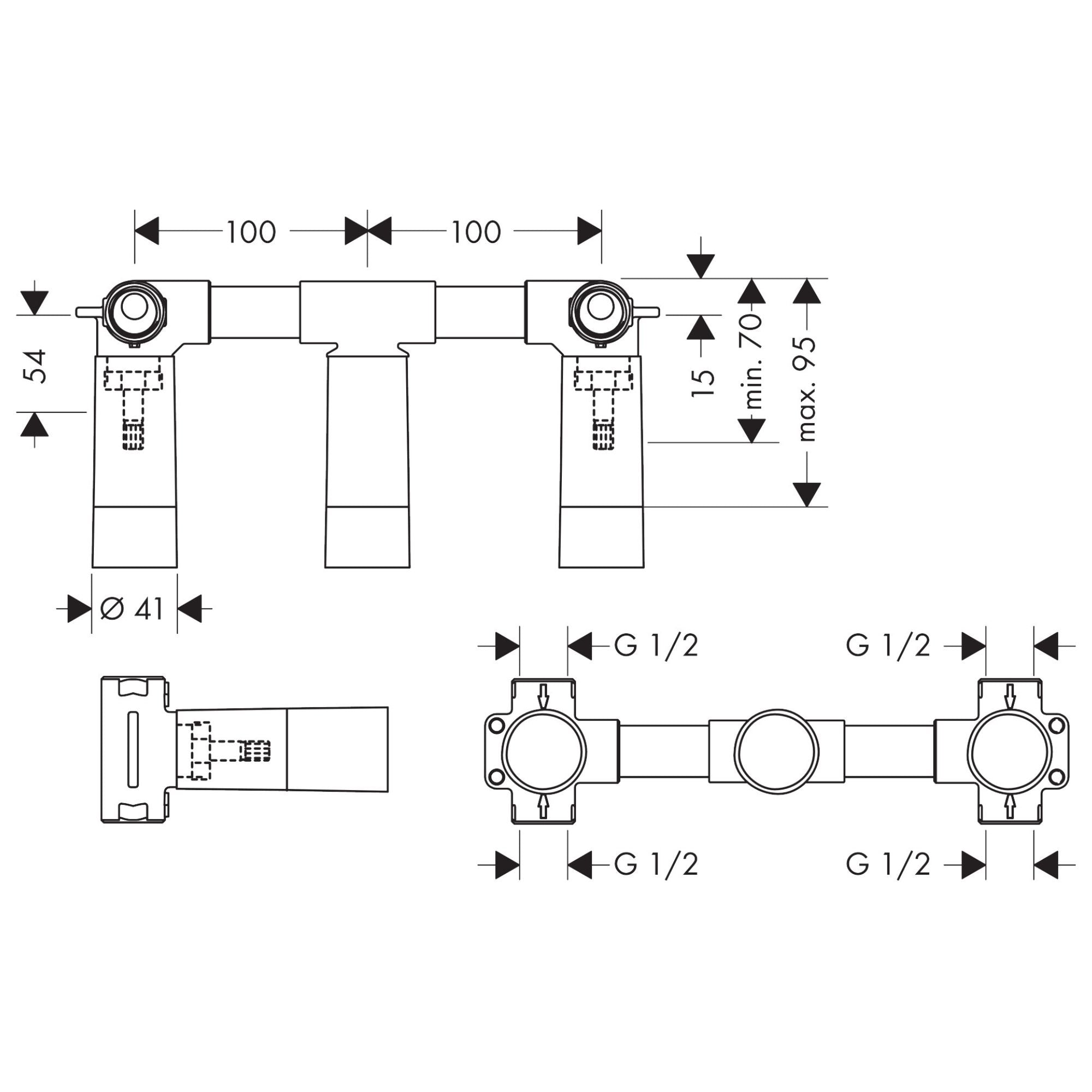

First fix part features
- Suitable for all 3-hole wash basin mixers for wall mounting
- Connection dimension: DN15/DN20
- Connection from above or below
- Minimum mounting depth: 70 mm
- Maximum mounting depth: 95 mm
